Kia
›
2010
›
Forte EX, Standard
›
Repair and Diagnosis
›
Accessories & Equipment
›
Communication Devices
›
BCM (Body Control Module)
›
Body Control Module (BCM)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

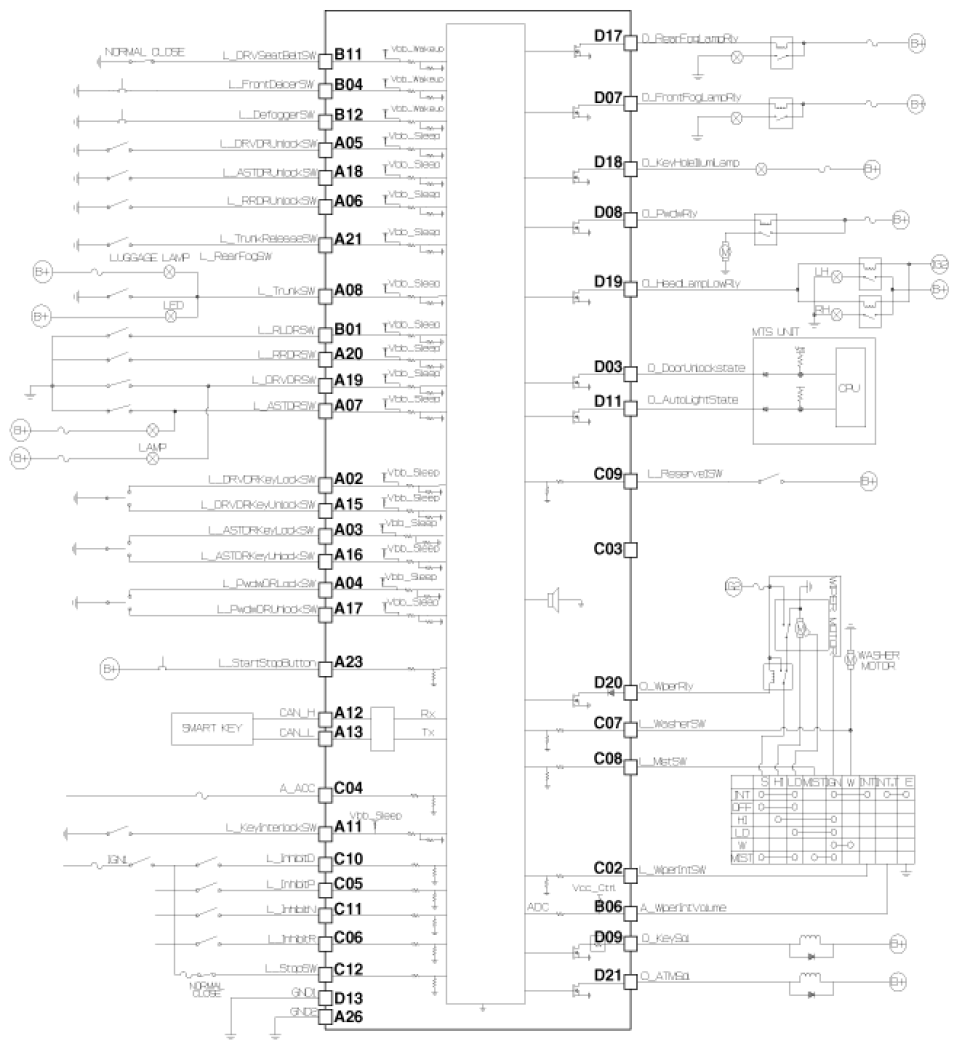

Fig 1: BCM - Circuit Diagram (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

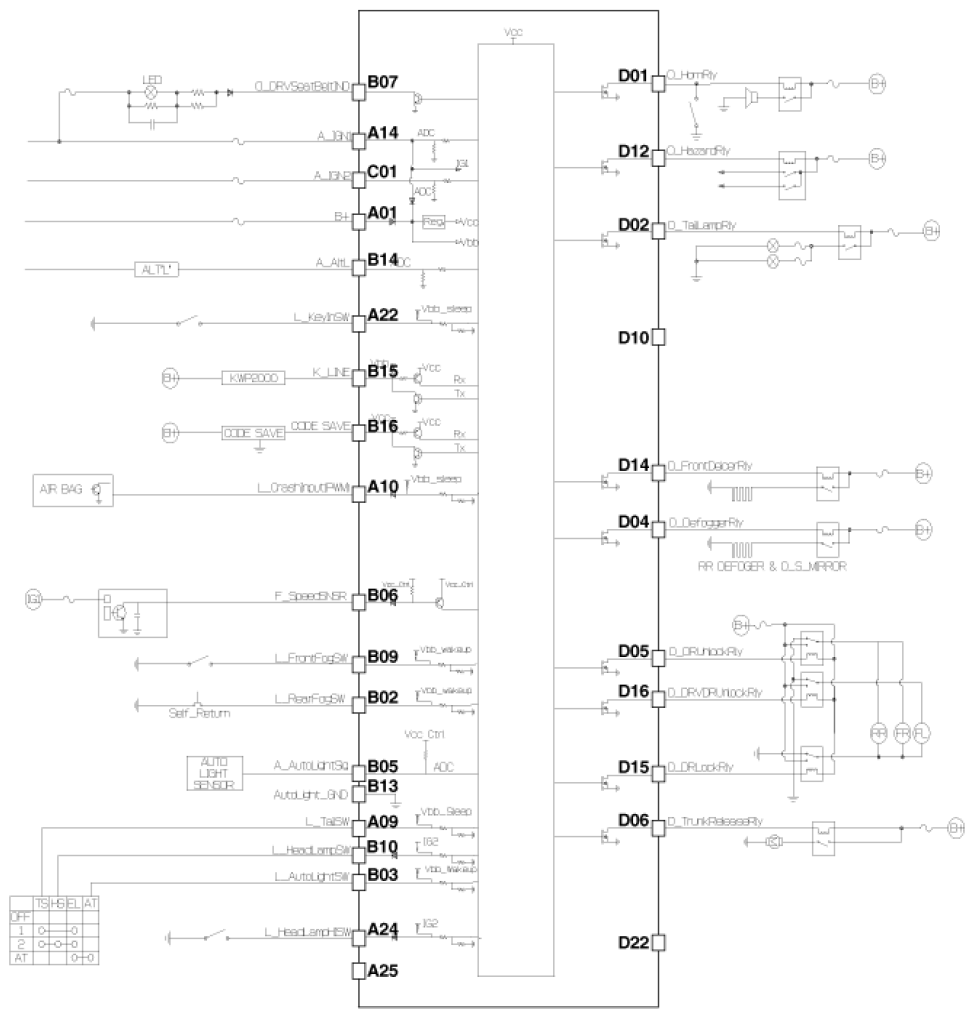

Fig 2: BCM - Circuit Diagram (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
