Guide Assembly Replacement
- Remove the sunroof assembly.

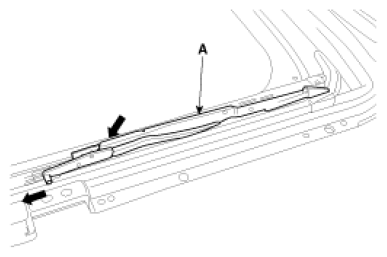

- Lower and slide the guide assembly (A) to the rear to remove.

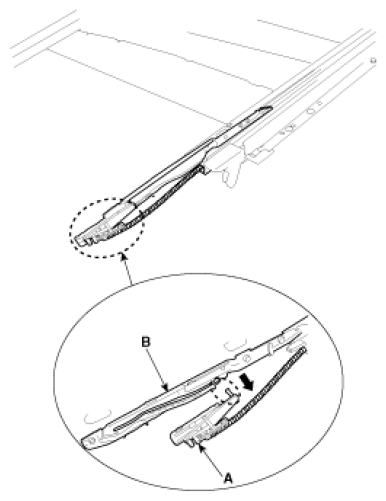

- Remove the guide (A) and slide (B).
- Installation is the reverse of removal.NOTE:

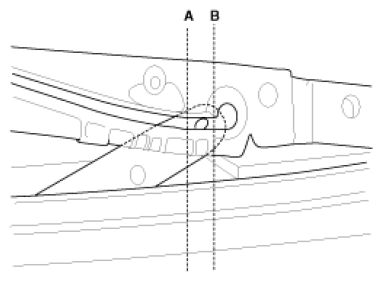

- Make sure to align the slide with the center of "A" and "B" as shown in Fig 3
- Make sure to initialize the motor.
