Components and Components Location: Components

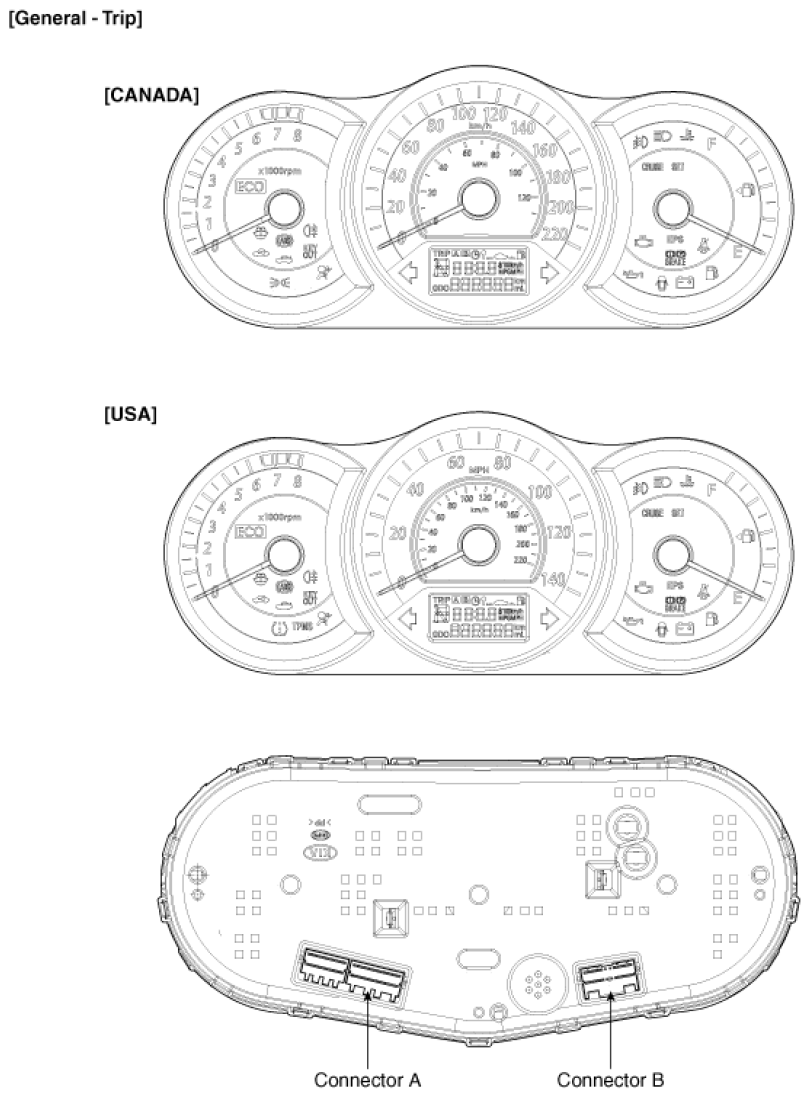

Fig 1: Identifying Instrument Cluster (General - Trip)
G06496212Courtesy of KIA MOTORS AMERICA, INC.

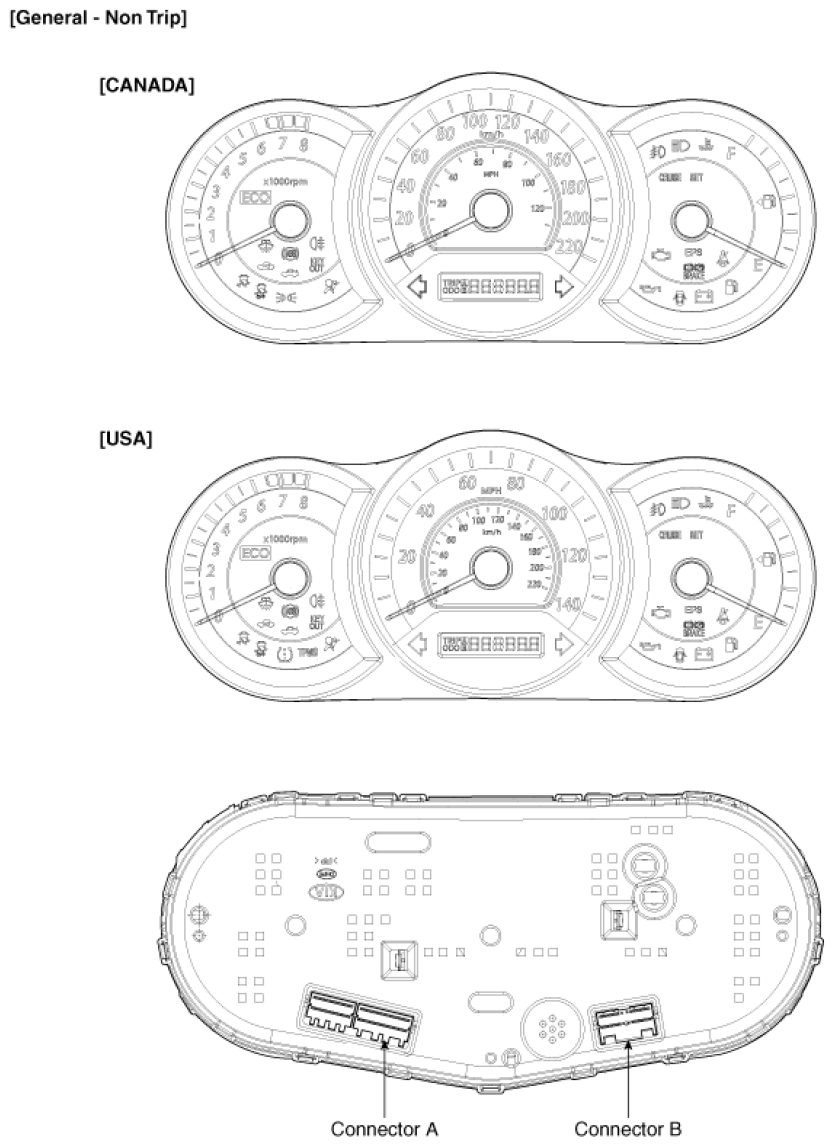

Fig 2: Identifying Instrument Cluster (General - Non Trip)
G06496213Courtesy of KIA MOTORS AMERICA, INC.

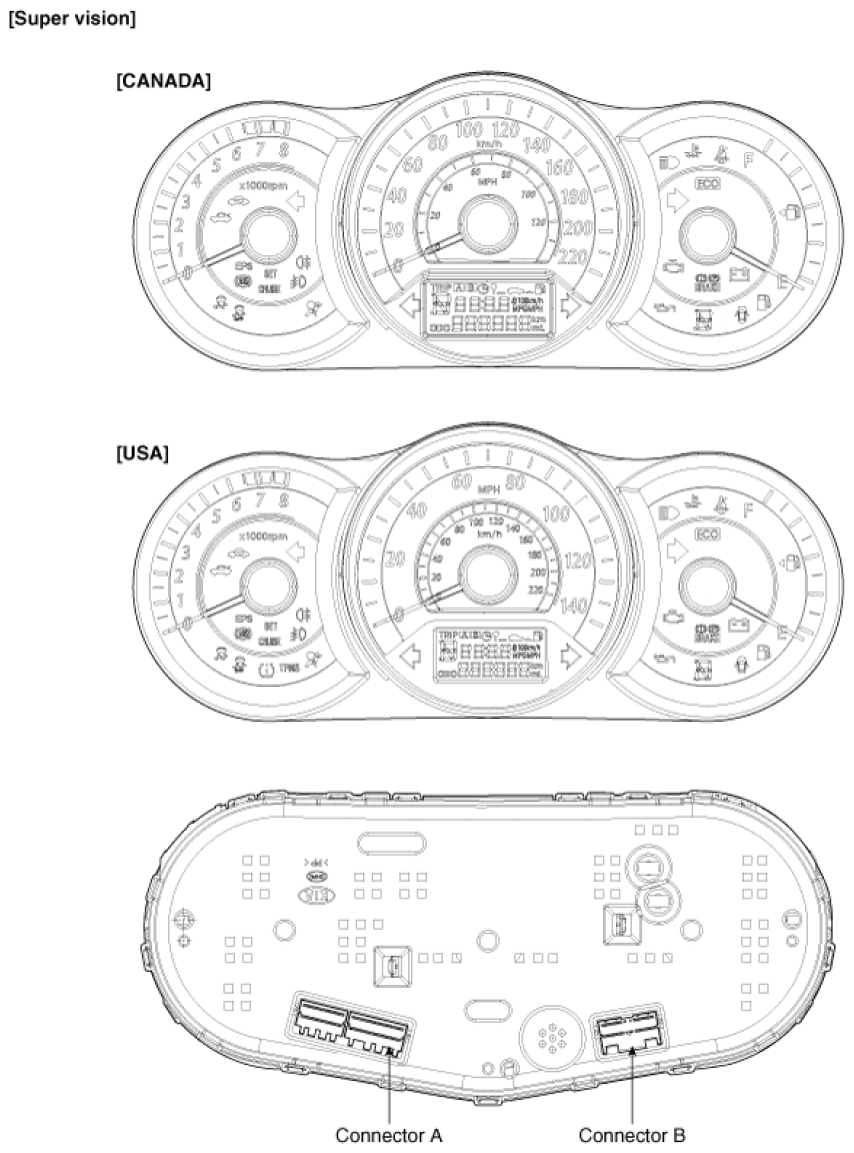

Fig 3: Identifying Instrument Cluster (Super Vision)
G06496214Courtesy of KIA MOTORS AMERICA, INC.

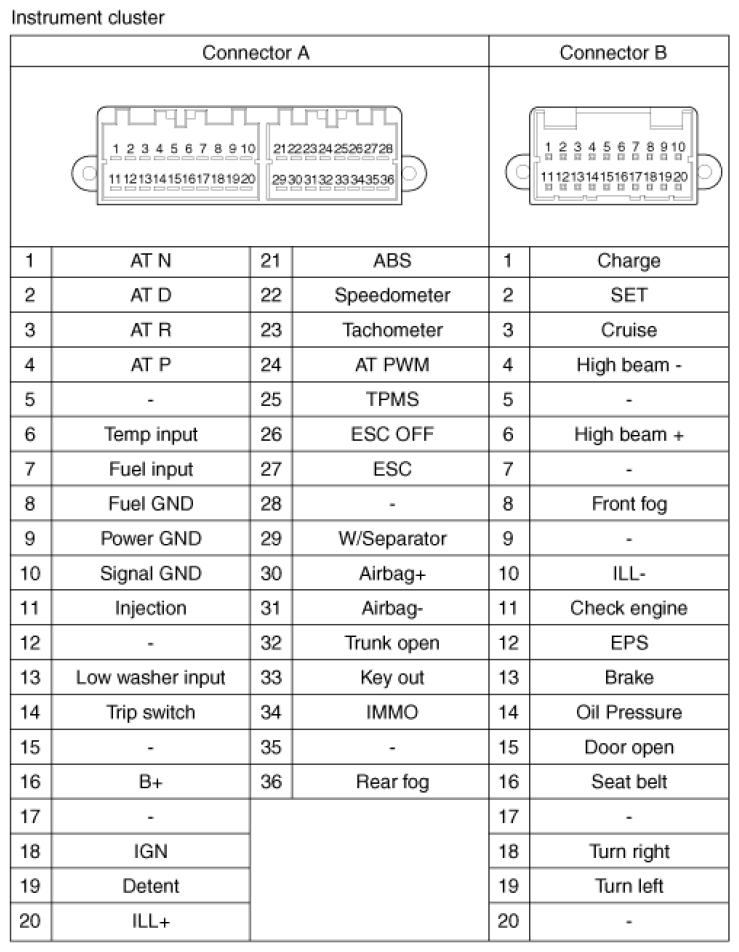

Fig 4: Identifying Instrument Cluster Connectors & Terminals
G06496215Courtesy of KIA MOTORS AMERICA, INC.
