Audio Assembly Replacement

Remove the center fascia panel.
After loosening the audio assembly mounting screws, then remove the audio assembly (A).

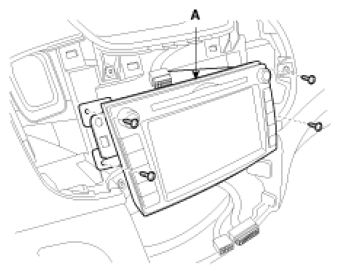

Fig 1: Identifying Audio Assembly & Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connectors (A).

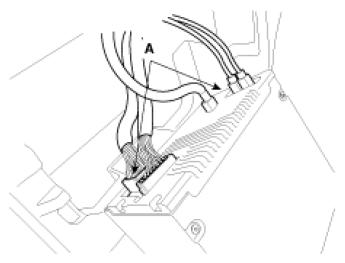

Fig 2: Identifying Audio Assembly Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Make sure the connector is plugged in properly.
