CAN communication Line Inspection

Connect SRSCM and Weight Classification System connector.
IG KEY ON.
Measure signal waveform between C-CAN HIGH terminal and C-CAN LOW terminal of SRSCM connector.
Specification : Refer to SIGNAL WAVEFORM AND DATA

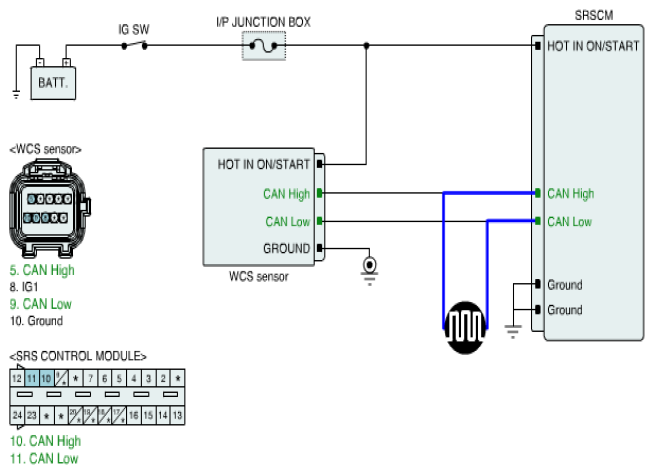

Fig 1: CAN Communication Line - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Is the measured resistance within specifications?
YES
- Go to "WCS RESET " procedure.
NO
- Substitute the SRSCM main harness or WCS Module or SRSCM and check for proper operation.
  If the problem is corrected, replace SRSCM main harness WCS Module or SRSCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure and Go to "WCS RESET " procedure.
