Monitor Scantool Data

  1. Ignition OFF, connect scantool.
  2. With Ignition ON & Engine OFF, select "Current Data" mode.
  3. Monitor the "All airbag resistance" parameter on the Scantool.

    Specification  : 0.9Ω< Resistance of airbag < 6.6Ω

    Reference  : In the case of an open in the airbag circuit: FAIL

    In the case of a short to battery in the airbag circuit: FAIL

    In the case of a short to ground in the airbag circuit: FAIL

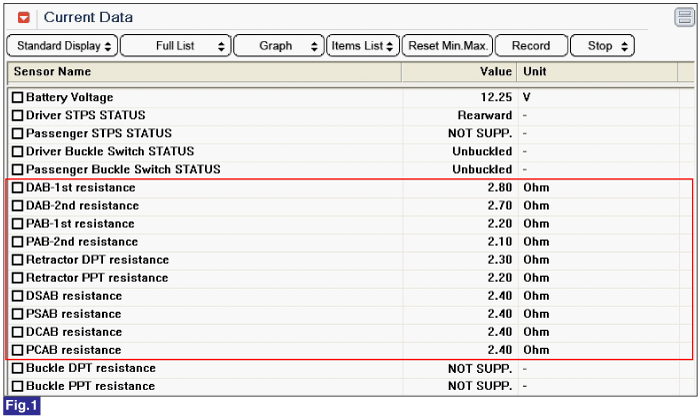

    Fig 1: Scantool Display - Current Data
    G06498200Courtesy of KIA MOTORS AMERICA, INC.
  4. Is parameter displayed within specifications?

    YES

    • Displaying nothing (no DTC) or DTC with label "H" (historical) shows that the fault is intermittent, caused by poor contact in the part's connector and/or SRSCM connector, or was repaired and SRSCM memory was not cleared.

      Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.

    • Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    • Check for short between ignition circuits of the DAB, PAB, BPT, CAB, SAB. If the condition of harness and component is OK, this fault is caused by an SRSCM internal error. Replace faulty SRSCM with a known-good SRSCM, and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
