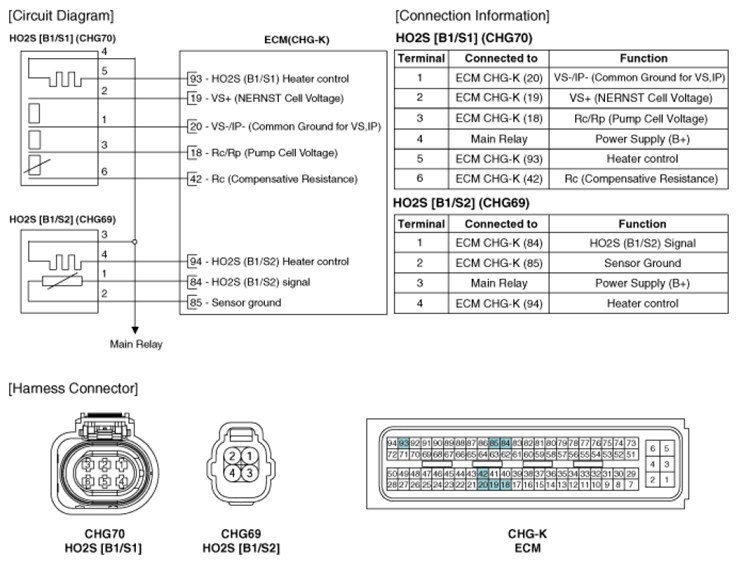

Home › Kia › 2010 › Forte SX, Automatic › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › Heated Oxygen Sensor (HO2S) › Schematic Diagrams › Circuit Diagram
