Variable Charge Motion Actuator (VCMA)
›
Schematic Diagrams
›
Circuit diagram
Circuit diagram

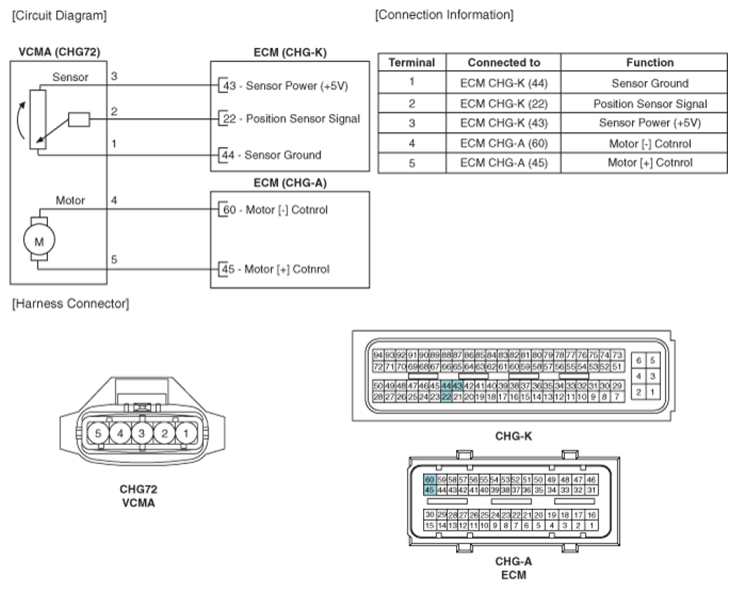

Fig 1: Variable Charge Motion Actuator - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
