Automatic Transaxle System - A5CF2
›
Automatic Transaxle
›
Components and Component Locations
›
Components (1)
Components (1)

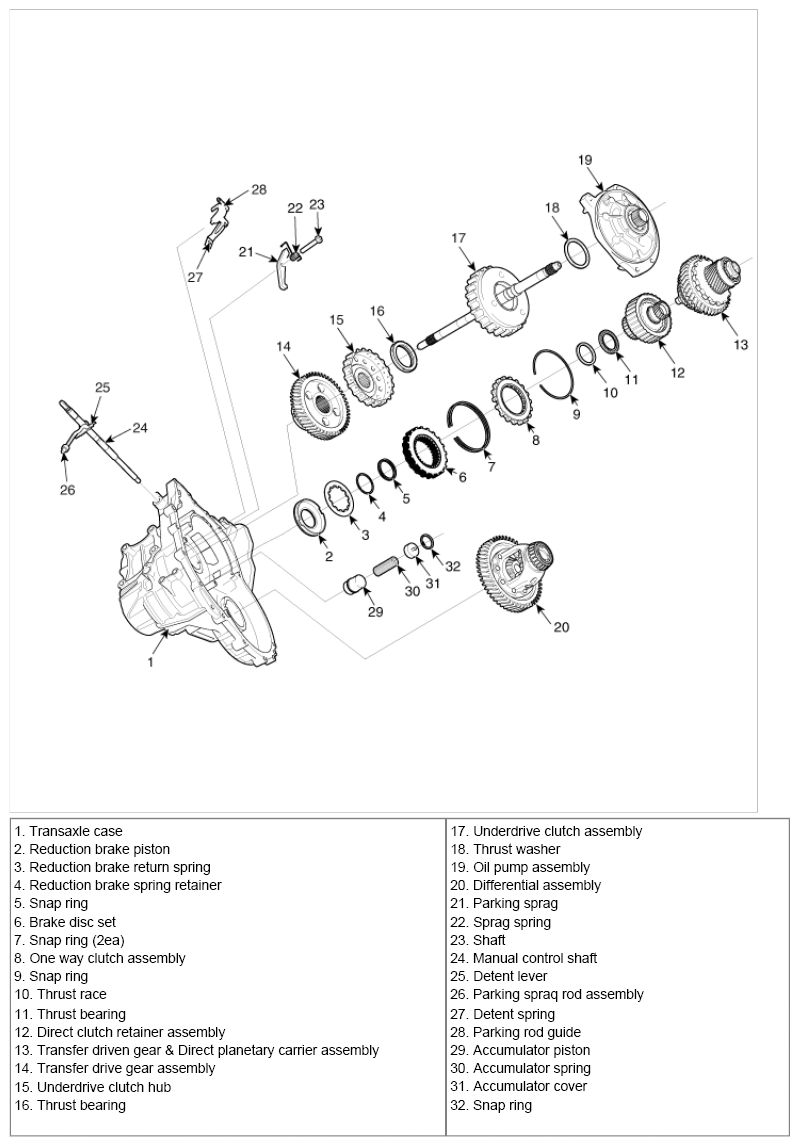

Fig 1: Identifying Automatic Transaxle Components (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
