Automatic Transaxle Control System - A5CF2
›
Shift Lever
›
Components and Component Locations
›
Components
Components and Component Locations: Components

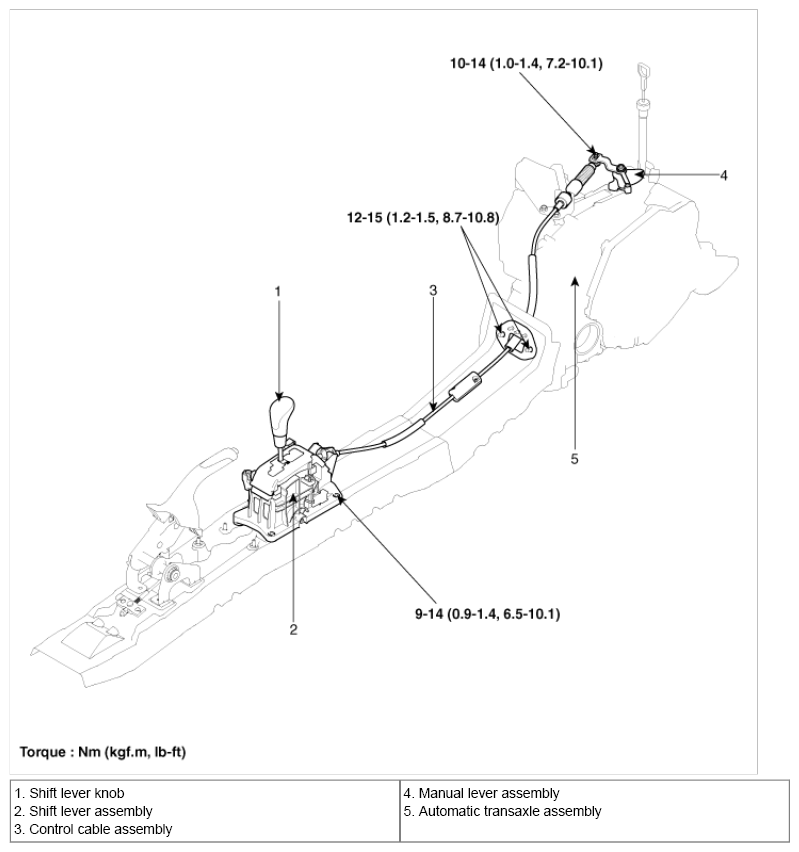

Fig 1: Shift Lever Replacement Components With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.
