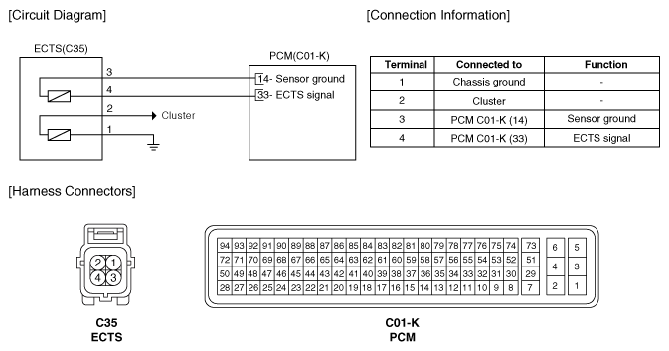

Home › Kia › 2010 › Optima EX, 2.4 8 › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.4L › Engine Coolant Temperature Sensor (ECTS) › Schematic Diagram › Circuit Diagram
