Components and Components Location: Replacement: Notes
NOTE:
- When removing and installing the trunk lid, an assistant is necessary.
- Wear gloves to protect hands from injury.

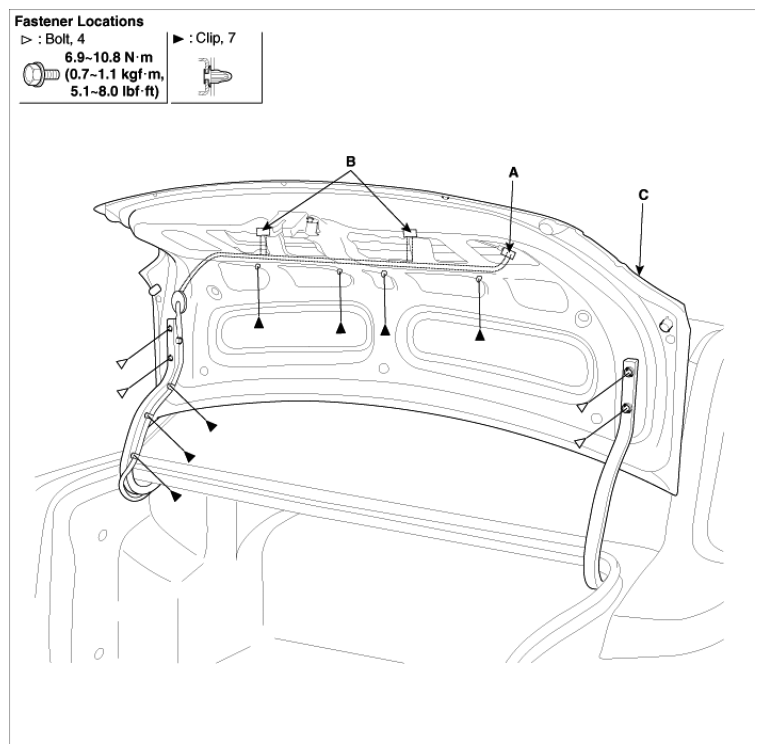

- Disconnect the key holder connector (A) license plate lamp connector (B) then remove the wiring harness from trunk lid.
- Loosen the trunk lid mounting bolt, then remove the trunk lid (C).
- Installation is the reverse of removal.
