Guide Assembly Replacement

Remove the sunroof assembly
Remove a guide assembly (A) after lowering a guide thoroughly by pushing a slide to rear.

Fig 1: Removing Guide Assembly
Courtesy of KIA MOTORS AMERICA, INC.

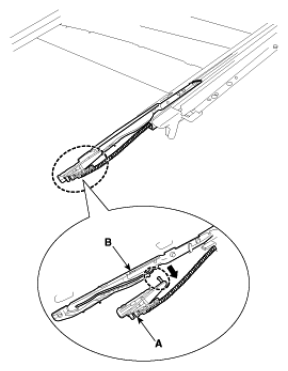

Remove the guide (A) and slide (B).

Fig 2: Removing Guide And Slide
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Make sure to align the slide with the center of "A" and "B"
- Make sure to initialize the motor.

  Fig 3: Aligning Slide
  Courtesy of KIA MOTORS AMERICA, INC.
