Circuit Diagram (2)
Circuit Diagram (2)

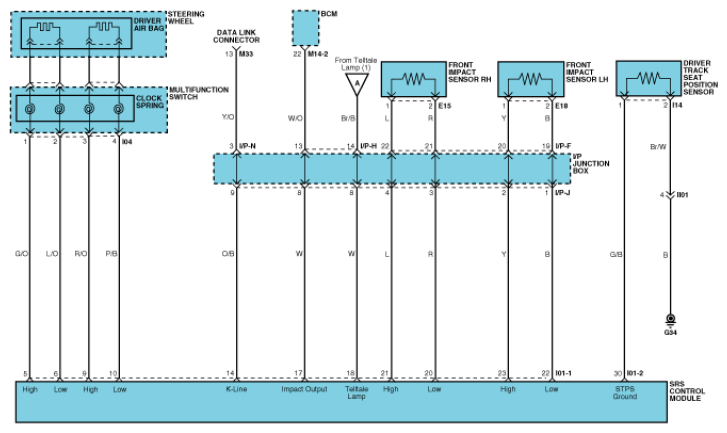

Fig 1: Restraint Circuit Diagram (2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
