Components and Components Location: Components

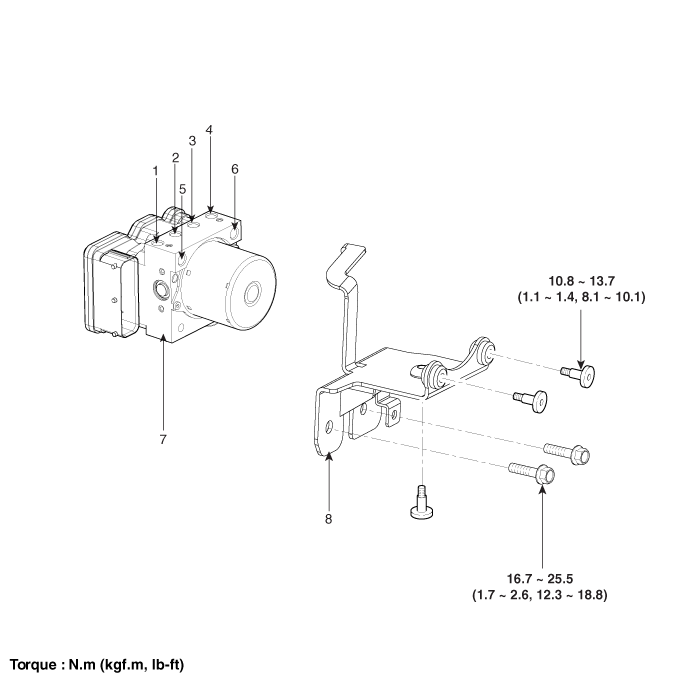

Fig 1: Identifying ABS Control Unit Components

Courtesy of KIA MOTORS AMERICA, INC.

1. Front-left tube	5. MC2
2. Rear-right tube	6. MC1
3. Rear-left tube	7. ABS control module (HECU)
4. Front-right tube	8. Bracket
