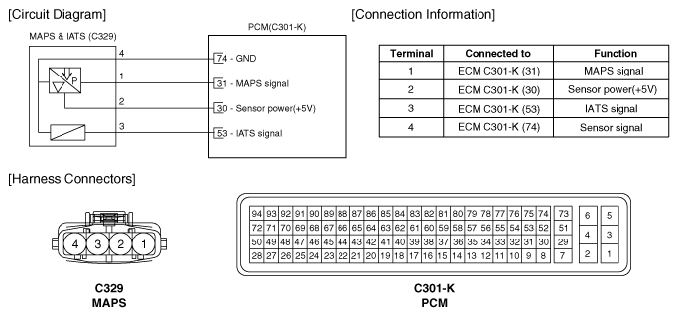

Home › Kia › 2010 › Rondo EX, 2.4 9 › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System -- 2.4L › Manifold Absolute Pressure Sensor (MAPS) › Schematic Diagrams › Circuit Diagram
