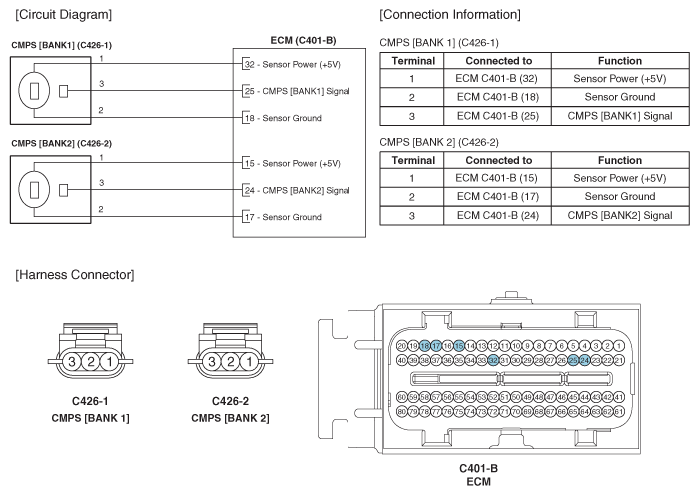

Home › Kia › 2010 › Rondo EX, 2.7 6 › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System -- 2.7L › Camshaft Position Sensor (CMPS) › Schematic Diagrams › Circuit Diagram
