Rondo LX, 2.4 9
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System -- 2.4L
›
Heated Oxygen Sensor (HO2S)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

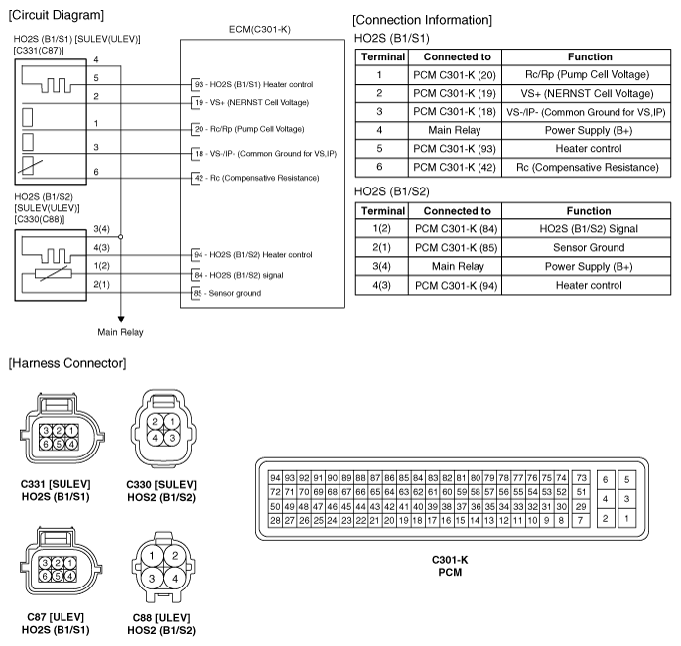

Fig 1: Heated Oxygen Sensor (HO2S) Circuit Diagram
