ABS Control

  1. Normal Braking without ABS
    ABS REFERENCE

      Inlet valve (IV) Outlet valve (OV) Return pump
    Operation Open Close OFF

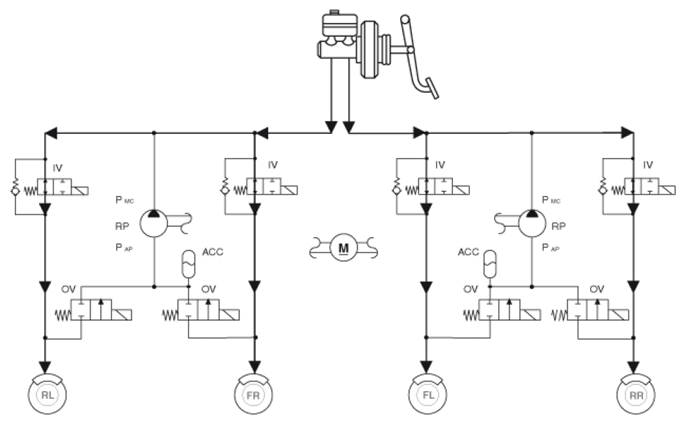

    Fig 1: Normal Braking Without ABS - Circuit Diagram
    G06838346Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: IV : Inlet Valve
    OV : Outlet Valve
    RL : Rear left wheel
    FR : Front right wheel
    FL : Front left wheel
    RR : Rear right wheel
    RP : Return pump
  2. Decrease Mode
    DECREASE MODE REFERENCE

      Inlet valve (IV) Outlet valve (OV) Return pump
    Operation Close Open ON (Motor speed control)

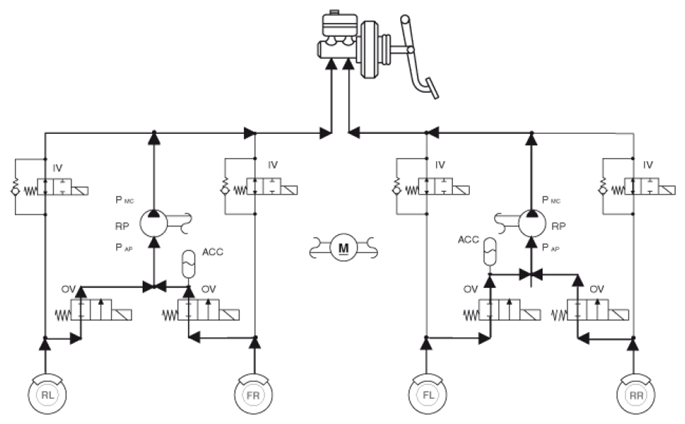

    Fig 2: Decrease Mode - Circuit Diagram
    G06838347Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: IV : Inlet Valve
    OV : Outlet Valve
    RL : Rear left wheel
    FR : Front right wheel
    FL : Front left wheel
    RR : Rear right wheel
    RP : Return pump
  3. Hold Mode
    HOLD MODE REFERENCE

      Inlet valve (IV) Outlet valve (OV) Return pump
    Operation Close Close ON (Motor speed control)

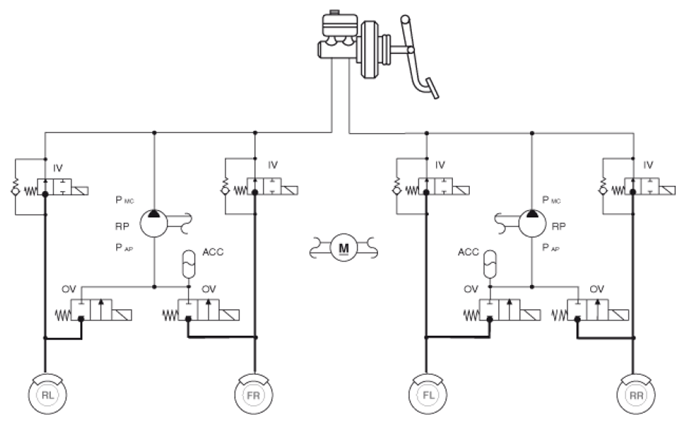

    Fig 3: Hold Mode - Circuit Diagram
    G06838348Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: IV : Inlet Valve
    OV : Outlet Valve
    RL : Rear left wheel
    FR : Front right wheel
    FL : Front left wheel
    RR : Rear right wheel
    RP : Return pump
  4. Increase Mode
    INCREASE MODE REFERENCE

      Inlet valve (IV) Outlet valve (OV) Return pump
    Operation Open Close ON (Motor speed control)

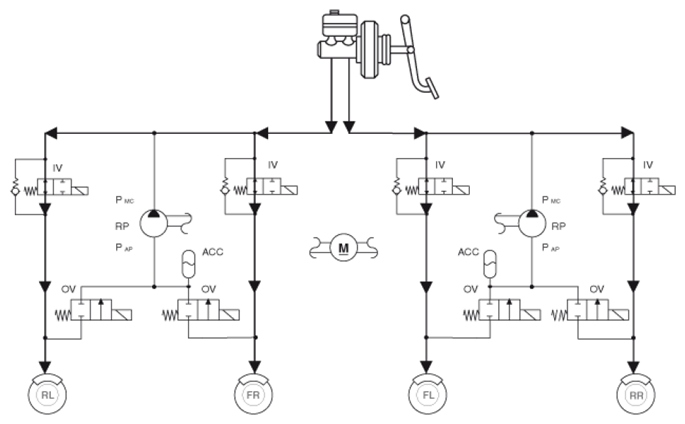

    Fig 4: Increase Mode - Circuit Diagram
    G06838349Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: IV : Inlet Valve
    OV : Outlet Valve
    RL : Rear left wheel
    FR : Front right wheel
    FL : Front left wheel
    RR : Rear right wheel
    RP : Return pump
