CVVT Oil Temperature Sensor (OTS)
›
Repair procedures
›
Schematic Diagram
Schematic Diagram

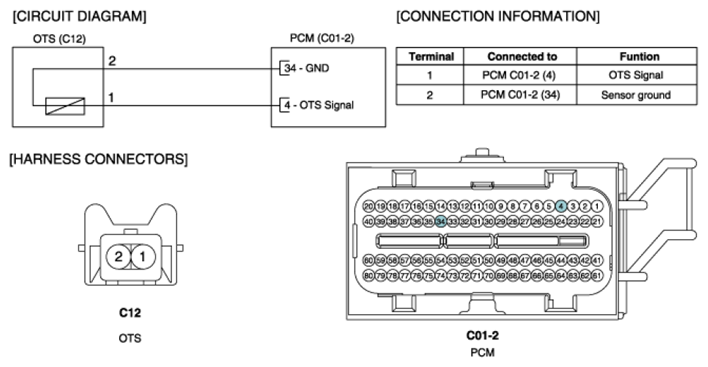

Fig 1: CVVT Oil Temperature Sensor - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
