Engine Coolant Temperature Sensor (ECTS)
›
Repair procedures
›
Schematic Diagram
Schematic Diagram

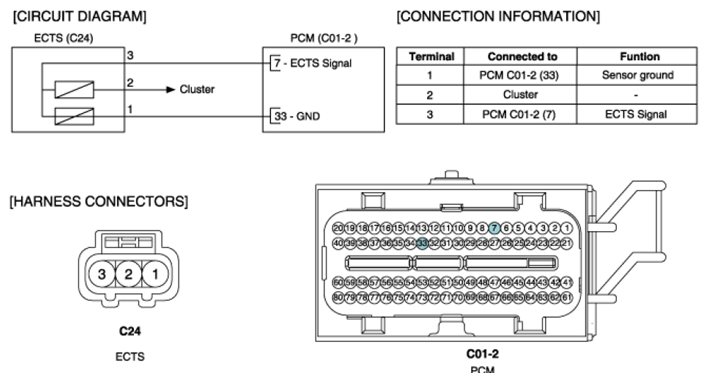

Fig 1: Engine Coolant Temperature Sensor - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
