Heated Oxygen Sensor (HO2S)
›
Repair procedures
›
Schematic Diagram
Schematic Diagram

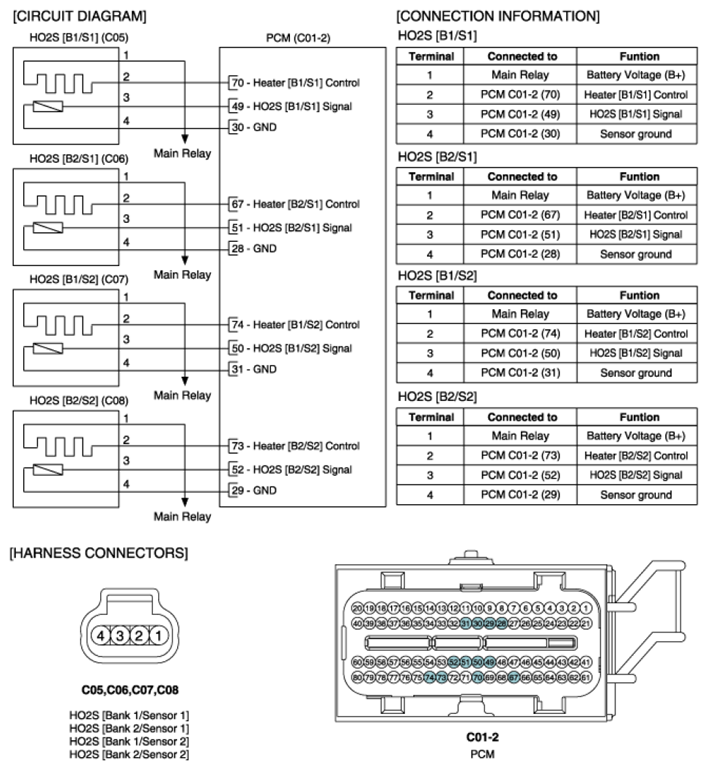

Fig 1: Heated Oxygen Sensor - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
