Injector
›
Repair procedures
›
Schematic Diagram
Schematic Diagram

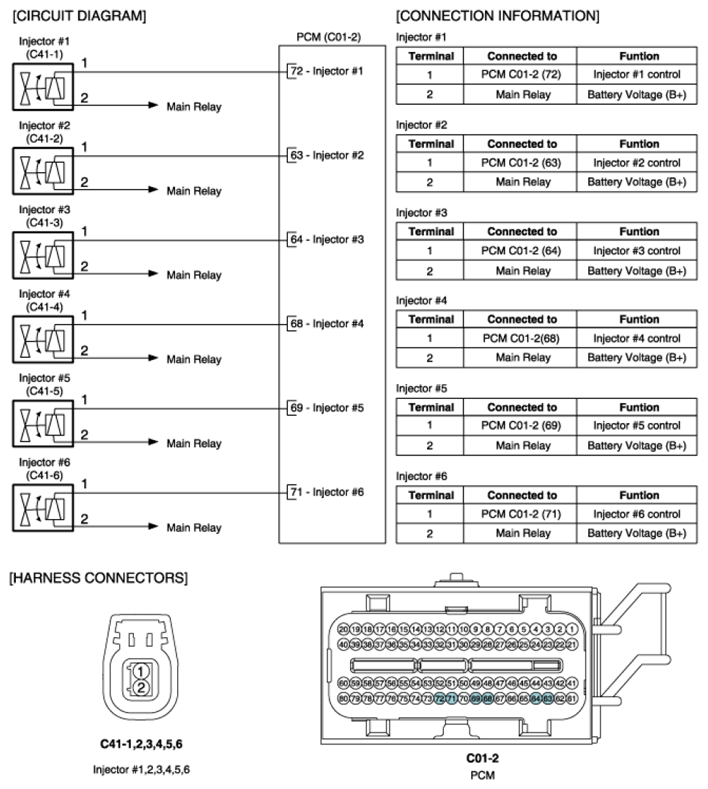

Fig 1: Injector - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
