Intake Air Temperature Sensor (IATS)
›
Repair procedures
›
Schematic Diagram
Schematic Diagram

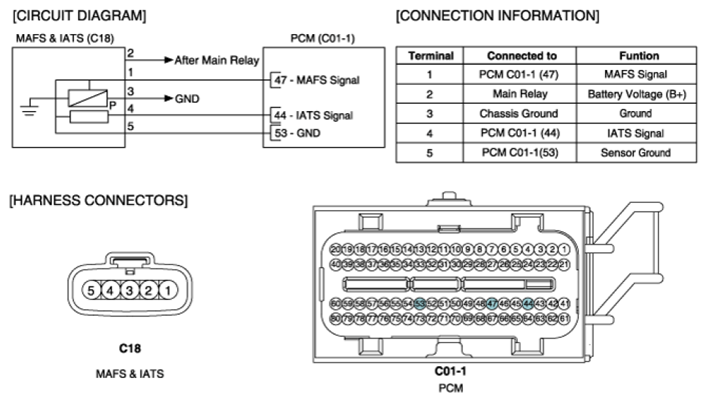

Fig 1: Intake Air Temperature Sensor - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
