Variable Intake Solenoid (VIS) Valve
›
Repair procedures
›
Schematic Diagram
Schematic Diagram

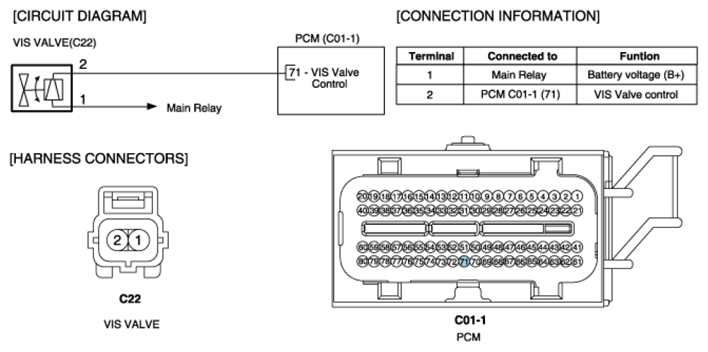

Fig 1: Variable Intake Solenoid Valve - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
