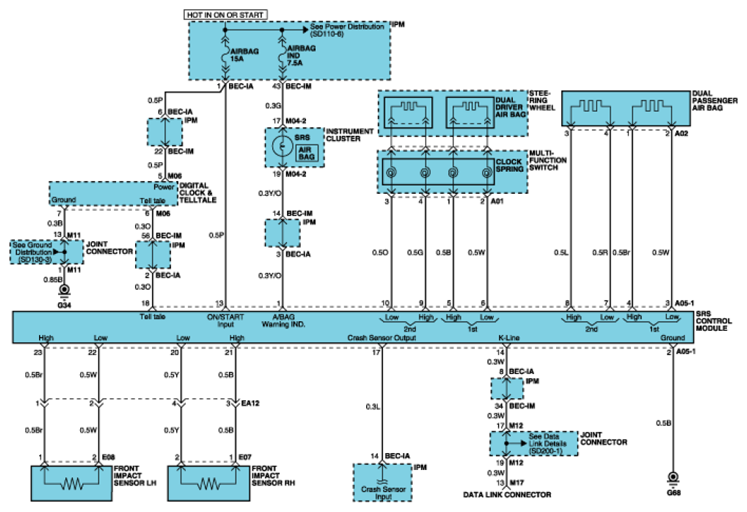

Home › Kia › 2010 › Sedona Base › Repair and Diagnosis › Restraints › Restraints Control Systems › Supplemental Restraints System Control Module (SRSCM) › Seat Belt Buckle Switch (BS › Schematic Diagrams › Circuit Diagram (1)
