Automatic Transaxle System
›
Automatic Transaxle
›
Components and Components Location
›
Components (1)
Components (1)

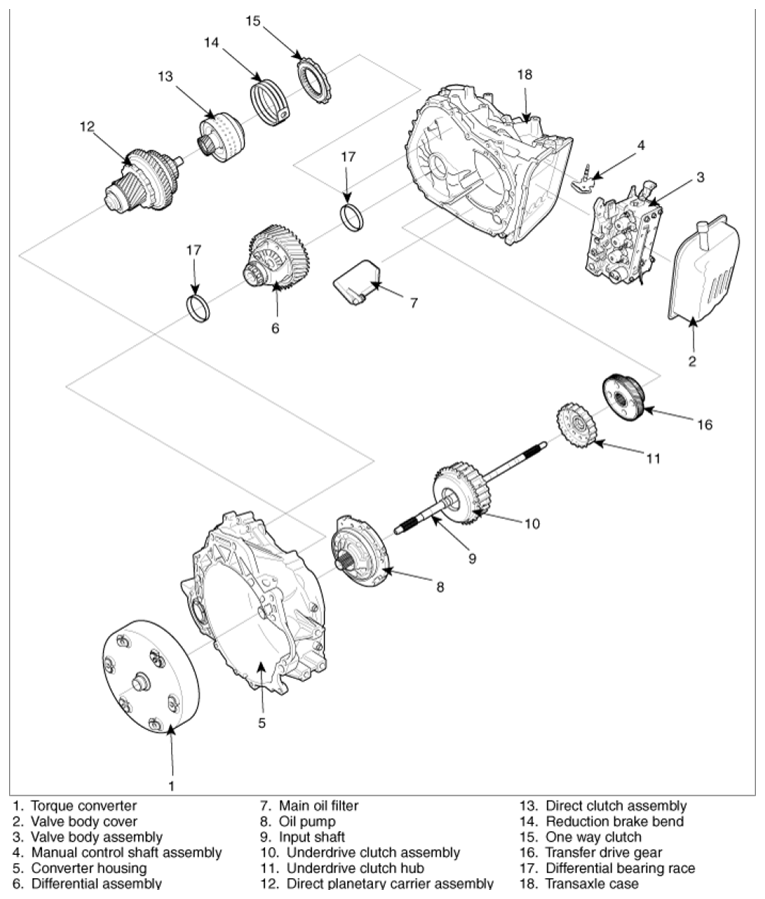

Fig 1: Exploded View Of Automatic Transaxle System (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Exploded View Of Automatic Transaxle System (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
