Engine Electrical System: Component

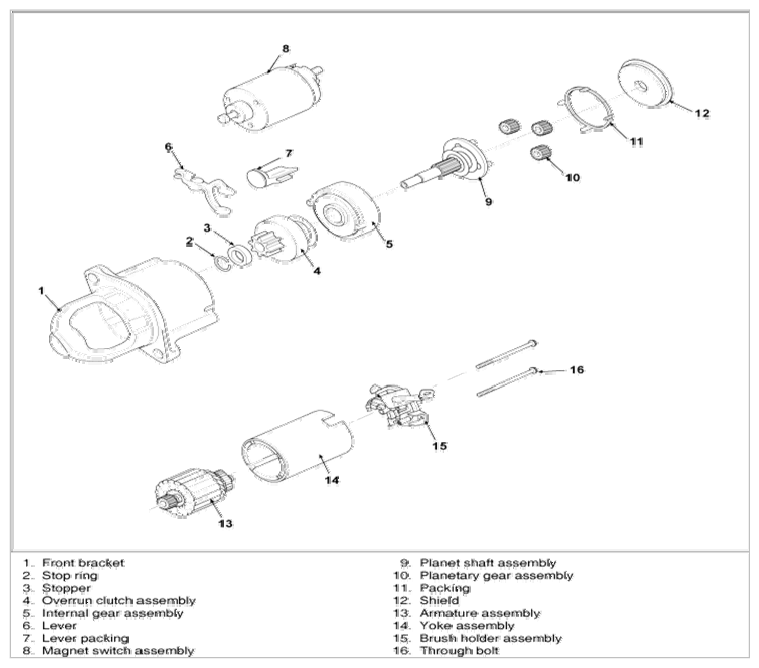

Fig 1: Identifying Starter Components
G06837984Courtesy of KIA MOTORS AMERICA, INC.
