Monitor Scantool Data

  1. Ignition "OFF".
  2. Connect Scantool and Engine "ON".
  3. Monitor "FLS" parameter on Current Data.

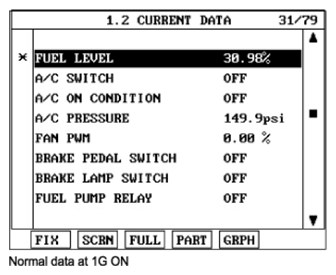

    Fig 1: Scantool Display - Current Data
    G06836869Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the "FLS" parameter displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in Sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Vehicle Repair" procedure.

    NO
