Components and Components Location: Components

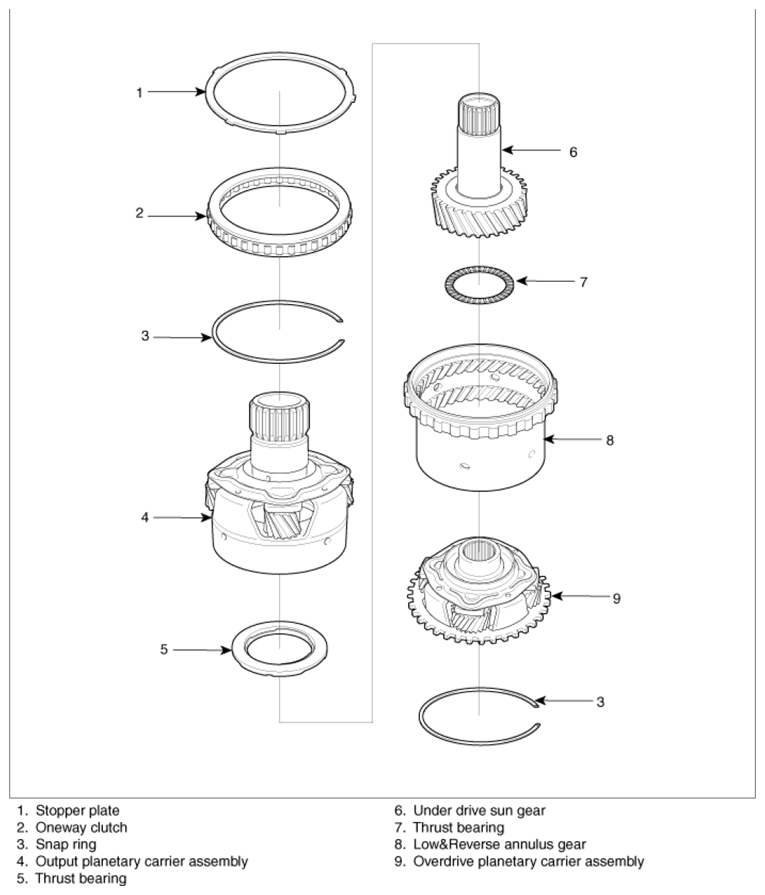

Fig 1: Exploded View Of Planetary Gear
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
