Neutralizing Of SMARTRA

The EMS can be set to the status "neutral" by scantool

The ignition key (regardless of key status) is inserted, and after IGN ON (if receiving the correct vehicle password from scan tool) the SMARTRA can be neutralized. The neutralization of the SMARTRA is possible if the DPN is same as the value inputted by the scan tool. If the SMARTRA status is neutral, the EMS keeps the lock state and the start is not possible by "twice ignition." If changing the vehicle password, only a new virgin transponder can be used. A virgin key can be used after the vehicle password is learned.

If wrong vehicle specific data have been sent to SMARTRA three times continuously or intermittently, the SMARTRA will reject the request to enter neutral mode for one hour. Disconnecting the battery or other manipulation cannot reduce this time. After connecting the battery the timer starts again for one hour.

Fig 1: Function Chart
G06525705Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
  • Neutralizing Setting condition:
    • In case of "SMARTRA status", "Learnt"
    • Input correct Pin code by scantool
  • Neutralizing meaning:
    • Vehicle password (DPN Code) & SEK Code deletion.
    • Permission of New DPN Learning.

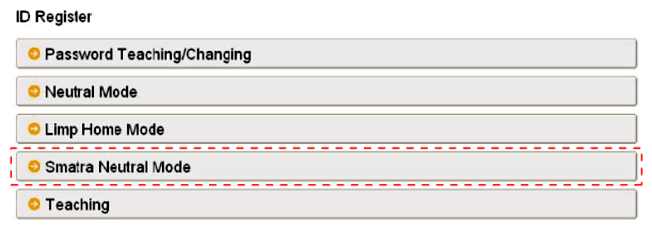

Fig 2: Screen Display - Neutralizing Of SMARTRA (1 Of 6)
G06525706Courtesy of KIA MOTORS AMERICA, INC.

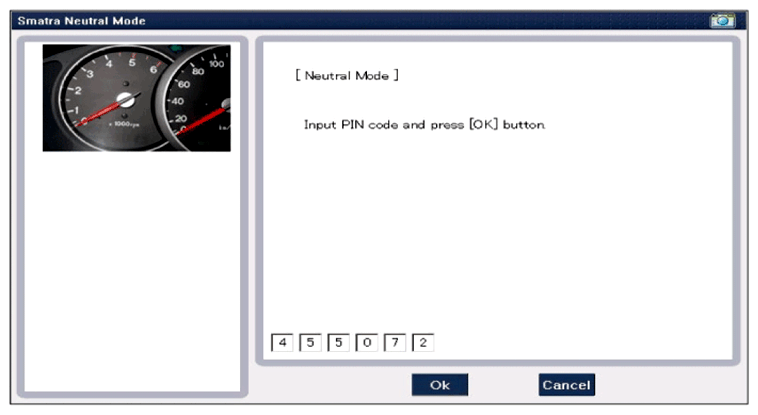

Fig 3: Screen Display - Neutralizing Of SMARTRA (2 Of 6)
G06525707Courtesy of KIA MOTORS AMERICA, INC.
Fig 4: Screen Display - Neutralizing Of SMARTRA (3 Of 6)
G06525708Courtesy of KIA MOTORS AMERICA, INC.

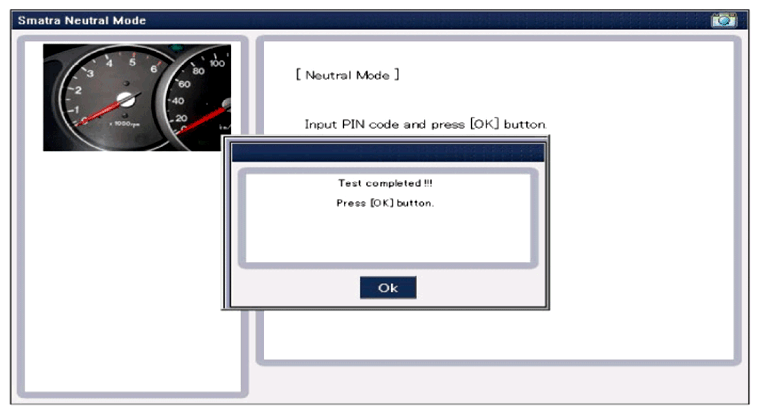

Fig 5: Screen Display - Neutralizing Of SMARTRA (4 Of 6)
G06525709Courtesy of KIA MOTORS AMERICA, INC.

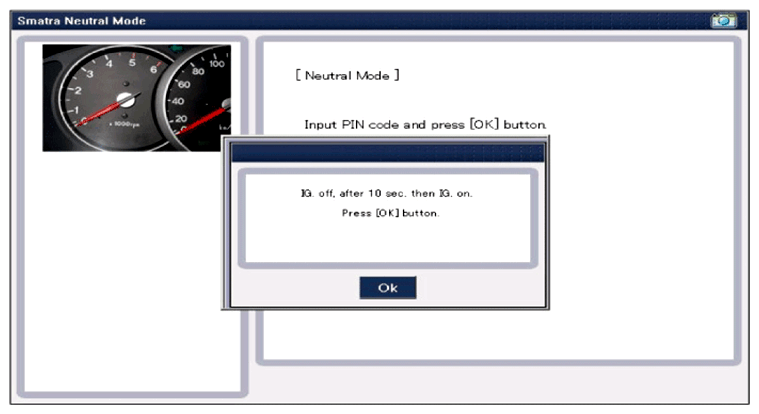

Fig 6: Screen Display - Neutralizing Of SMARTRA (5 Of 6)
G06525710Courtesy of KIA MOTORS AMERICA, INC.

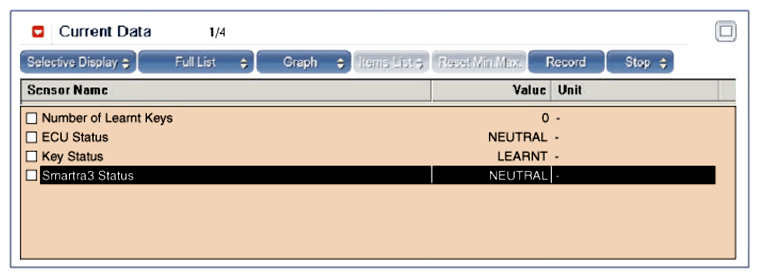

Fig 7: Screen Display - Neutralizing Of SMARTRA (6 Of 6)
G06525711Courtesy of KIA MOTORS AMERICA, INC.
