Guide Assembly Replacement

  1. Remove the sunroof assembly.
  2. Remove a guide assembly (A) after lowering a guide thoroughly by pushing a slide (B) to rear.
    Fig 1: Identifying Guide Assembly & Slide
    G06525122Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the guide (A) and slide (B).

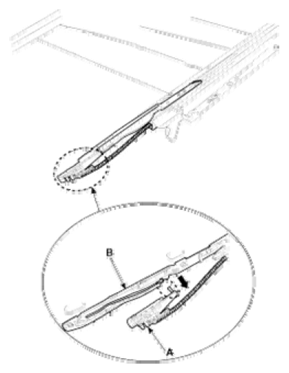

    Fig 2: Identifying Guide & Slide
    G06525123Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse of removal.
NOTE:
  • Make sure to align the slide with the center of "A" and "B" as shown in Fig 3.
  • Make sure to initialize the motor.

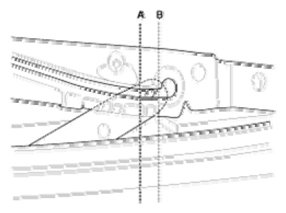

Fig 3: Aligning Slide
G06525124Courtesy of KIA MOTORS AMERICA, INC.
