Connector End Views
›
Data Link Connector End View
Data Link Connector End View

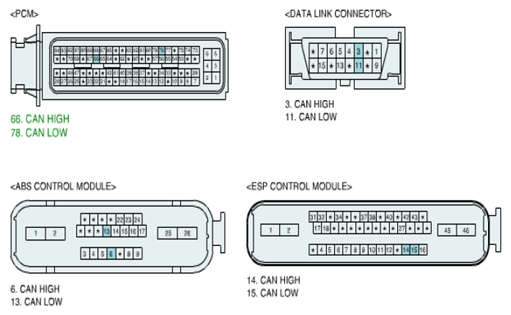

Fig 1: Data Link Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
