Circuit Diagram (2)
Circuit Diagram (2)

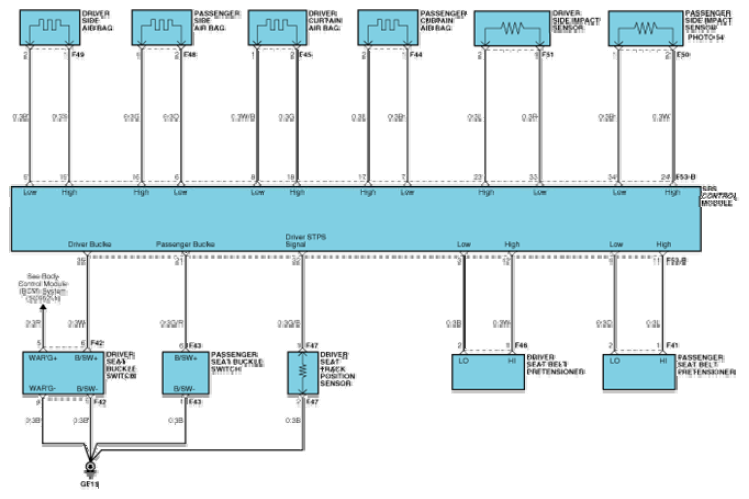

Fig 1: SRS Circuit Diagram 2
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
