Description And Operation: Components

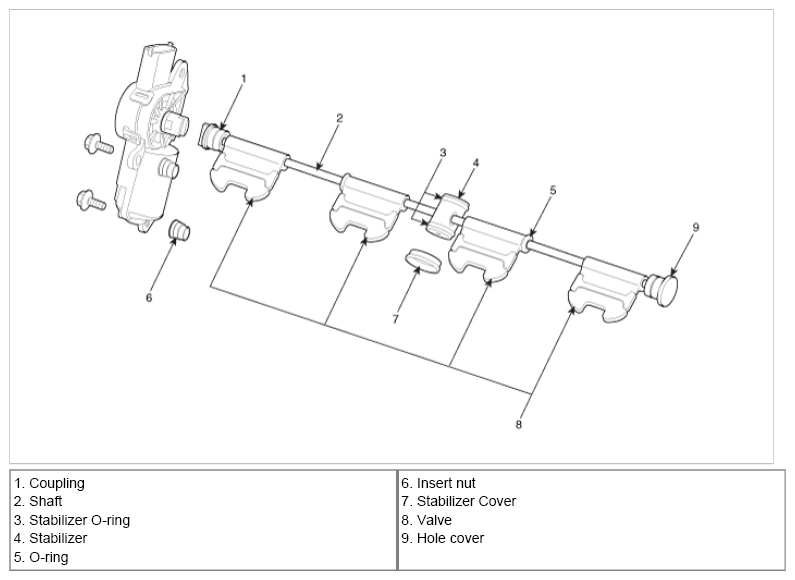

Fig 1: Variable Charge Motion Actuator (VCMA) Components
G07367845Courtesy of KIA MOTORS AMERICA, INC.
