2011
›
Optima Hybrid
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - HEV
›
CVVT Oil Control Valve (OCV)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

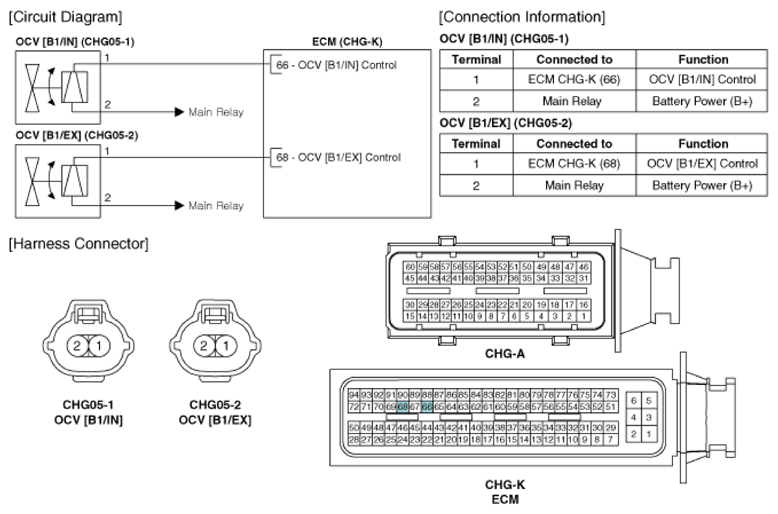

Fig 1: OCV And ECM (CHG-K) - Circuit Diagram With Connector Terminals End View
