Knock Sensor (KS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

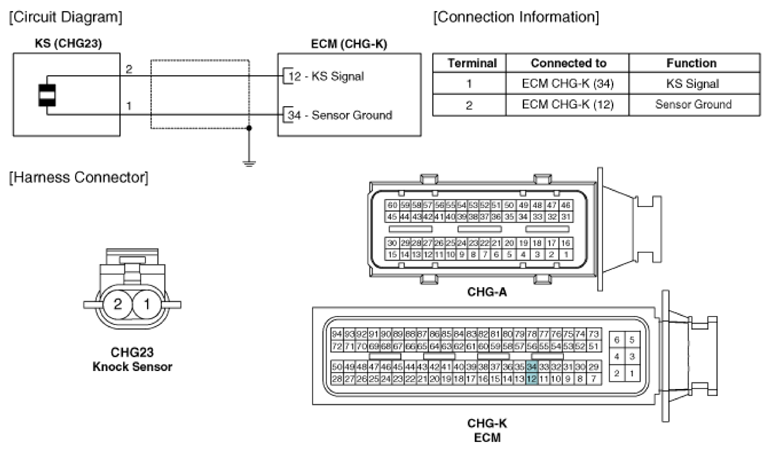

Fig 1: KS (CHG23) And ECM (CHG-K) - Circuit Diagram With Connector Terminals End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
