Fuel Pressure Control Valve
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

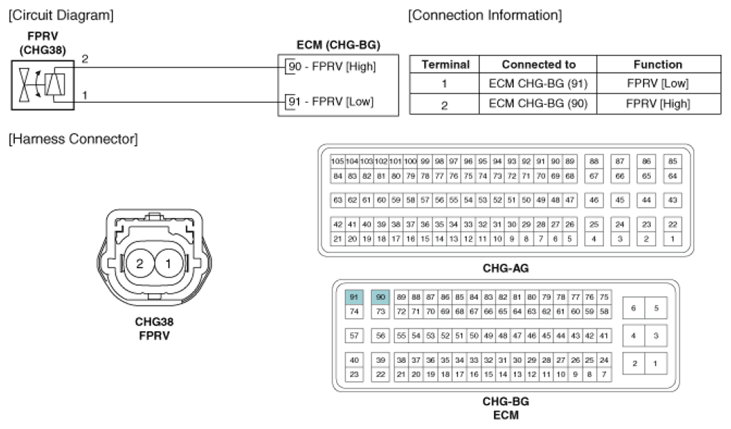

Fig 1: Fuel Pressure Control Valve Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
