Engine Control System - 2.4L
›
Injector
›
Troubleshooting
›
Signal Waveform
Signal Waveform

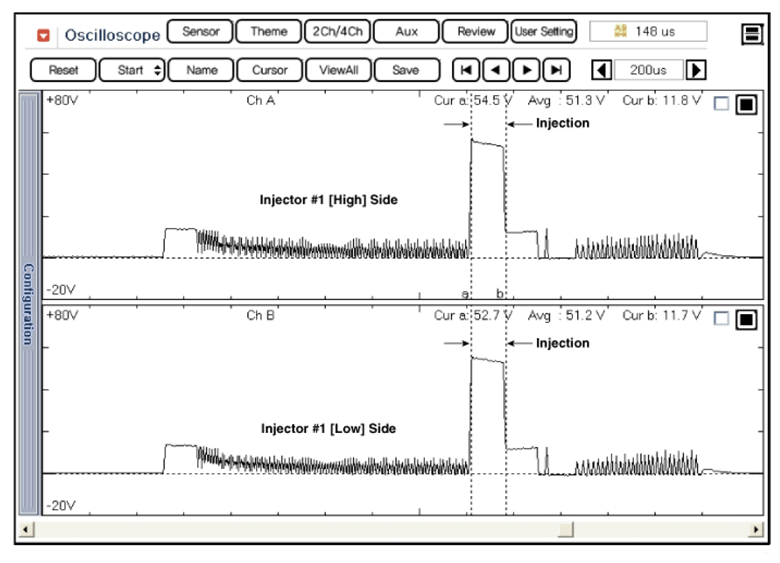

Fig 1: Injector Signal Waveform (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

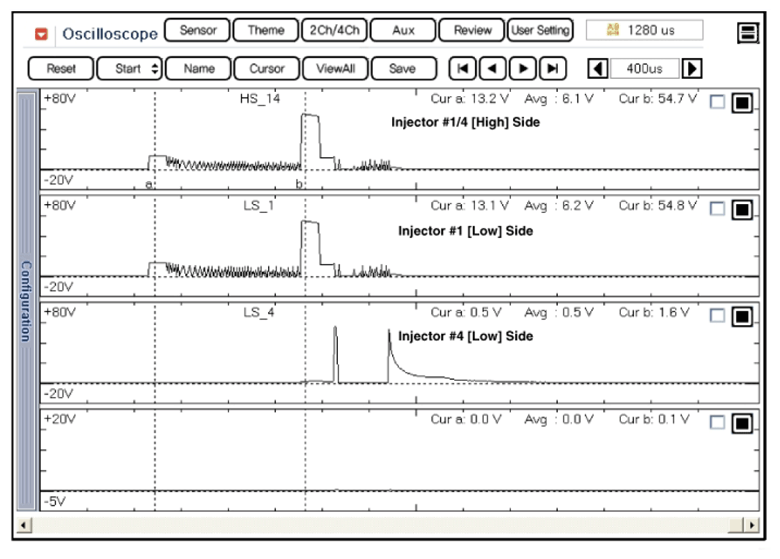

Fig 2: Injector Signal Waveform (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
