BCM (Body Control Module)
›
Body Control Module
›
Schematic Diagrams - Revised
›
Circuit Diagram
›
BCM & Receiver
BCM & Receiver

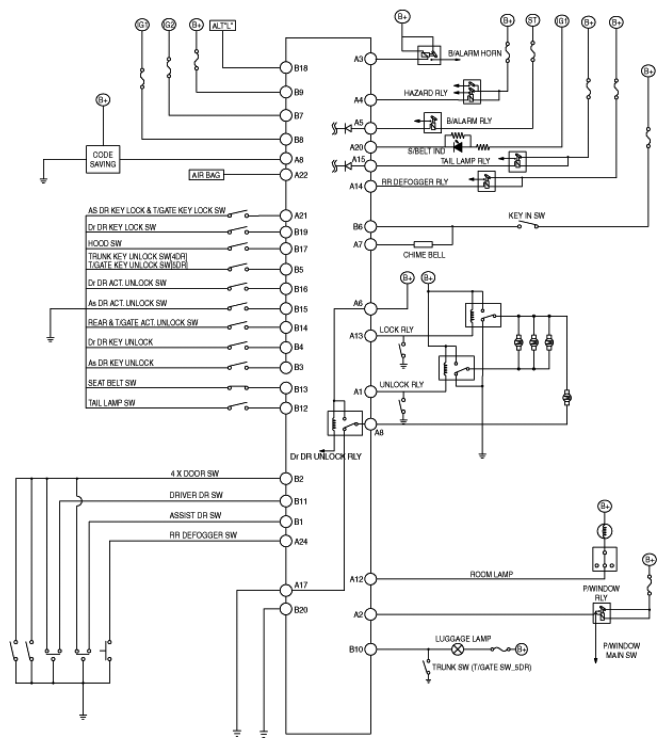

Fig 1: BCM & Receiver Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
