Circuit Diagram: BCM

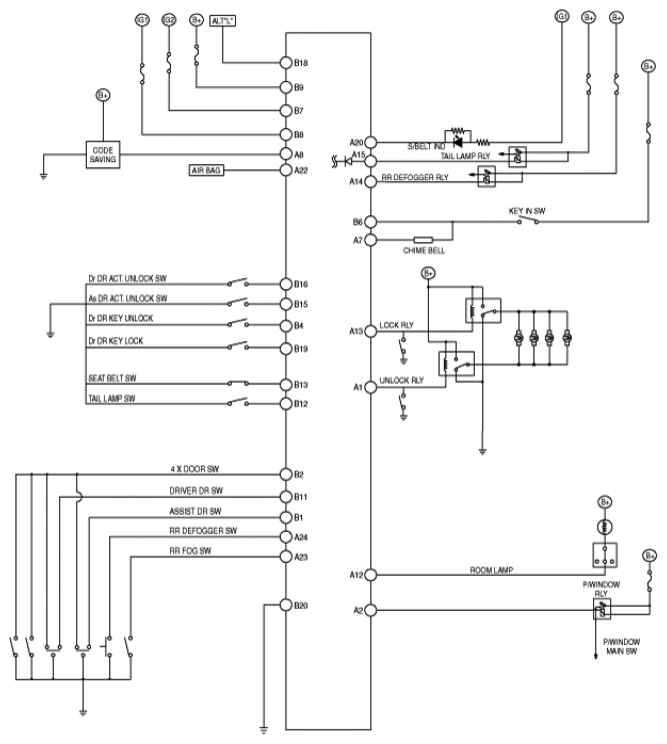

Fig 1: BCM Circuit Diagram
G06829639Courtesy of KIA MOTORS AMERICA, INC.

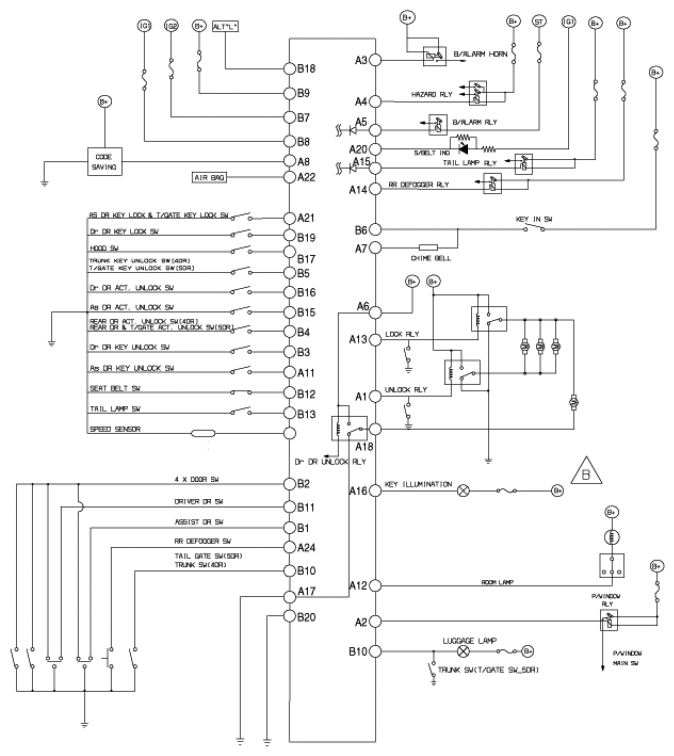

Fig 1: BCM Circuit Diagram
G06829642Courtesy of KIA MOTORS AMERICA, INC.
