Components and Components Location: Component

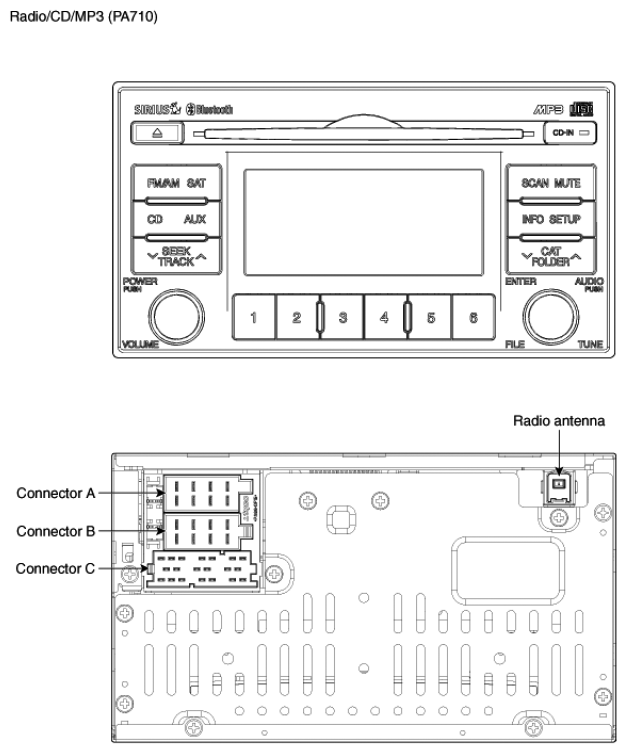

Fig 1: Identifying Audio Unit Components Location (Radio/CD/MP3 - PA710)

Courtesy of KIA MOTORS AMERICA, INC.

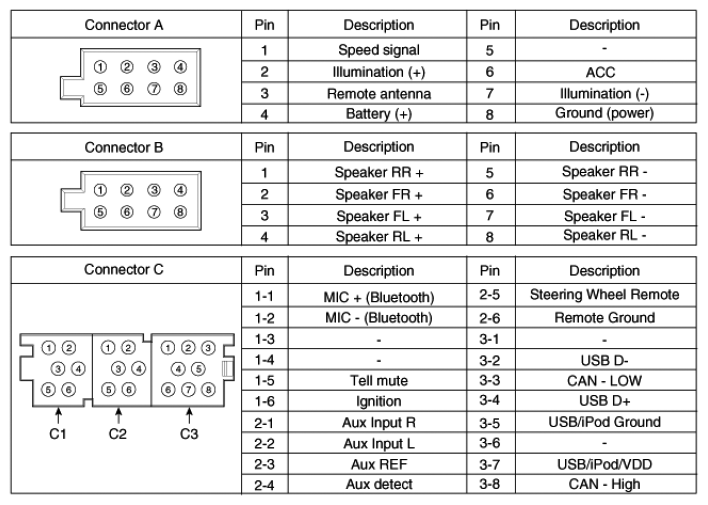

Fig 2: Identifying Audio Unit Connectors (Radio/CD/MP3 - PA710)

Courtesy of KIA MOTORS AMERICA, INC.

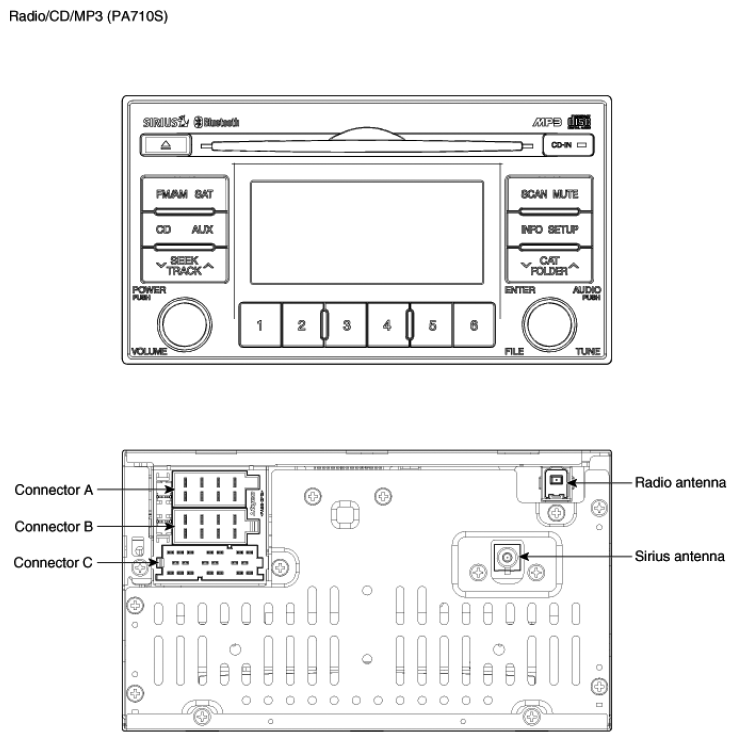

Fig 3: Identifying Audio Unit Components Location (Radio/CD/MP3 - PA710S)

Courtesy of KIA MOTORS AMERICA, INC.

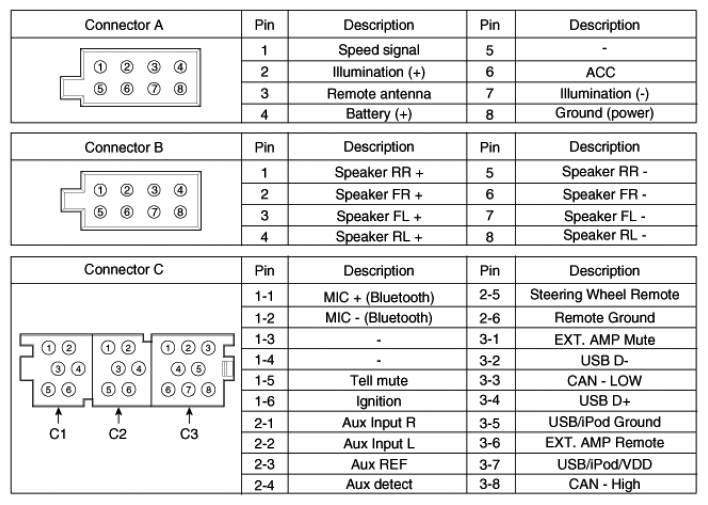

Fig 4: Identifying Audio Unit Connectors (Radio/CD/MP3 - PA710S)

Courtesy of KIA MOTORS AMERICA, INC.
