Circuit Diagram
Circuit Diagram

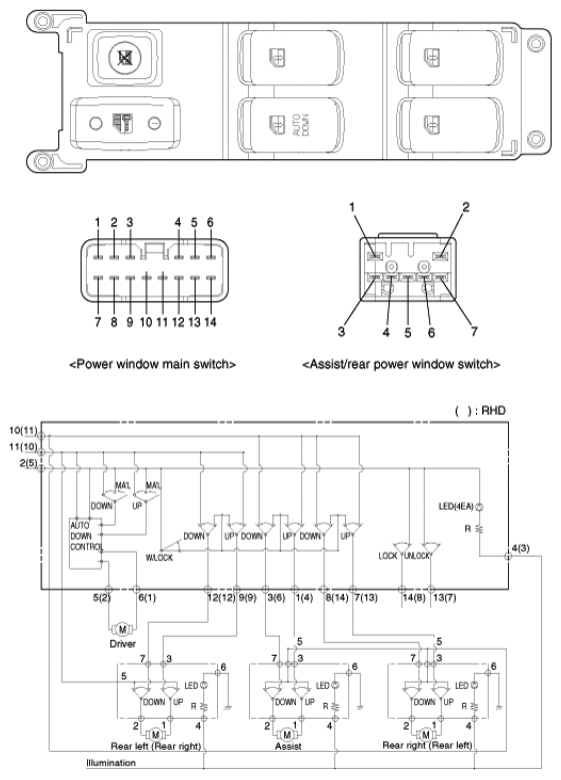

Fig 1: Power Window Switch - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
