Standard Flow Of Diagnostic Troubleshooting
Standard Flow Of Diagnostic Troubleshooting

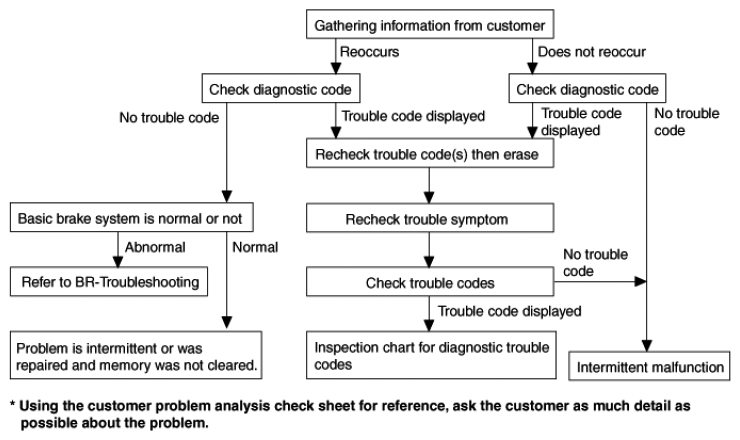

Fig 1: Standard Flow Of Diagnostic Troubleshooting Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
