CKP Sensor & CMP Sensor Connector End Views
CKP Sensor & CMP Sensor Connector End Views

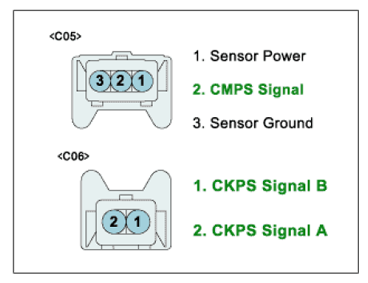

Fig 1: CKP Sensor & CMP Sensor Connector End Views
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
