Components and Components Location
›
Component
Components and Components Location: Component

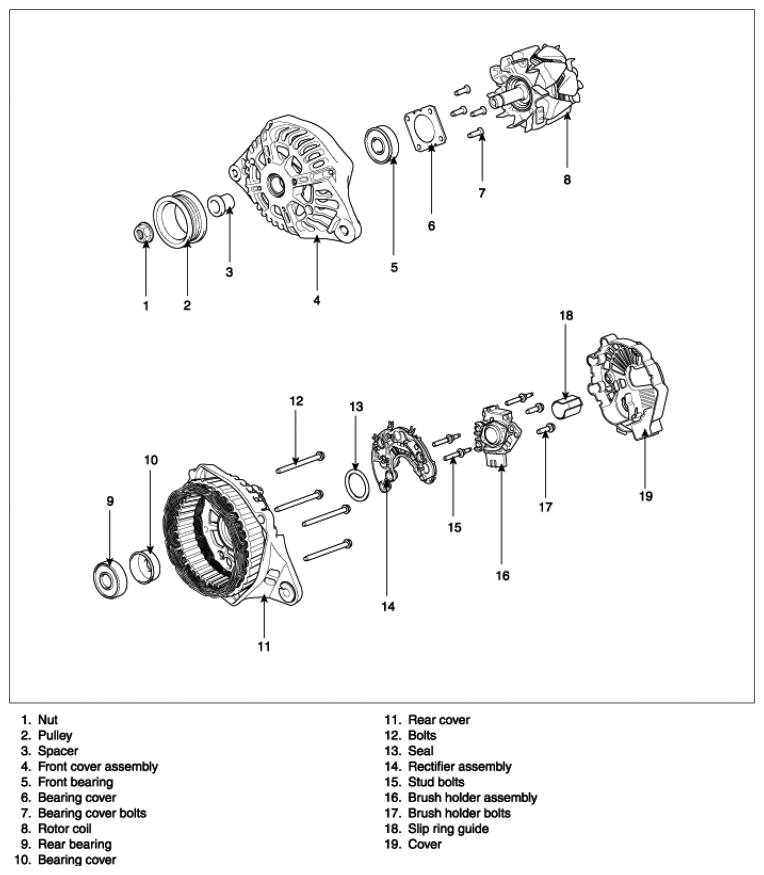

Fig 1: Identifying Alternator Components Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
