Components and Components Location: Component

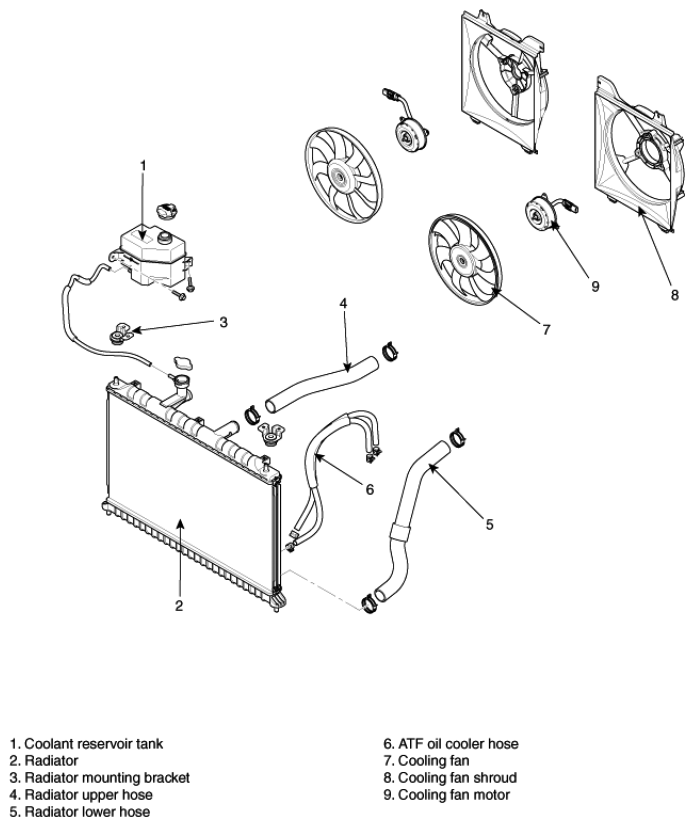

Fig 1: Identifying Cooling System Components (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

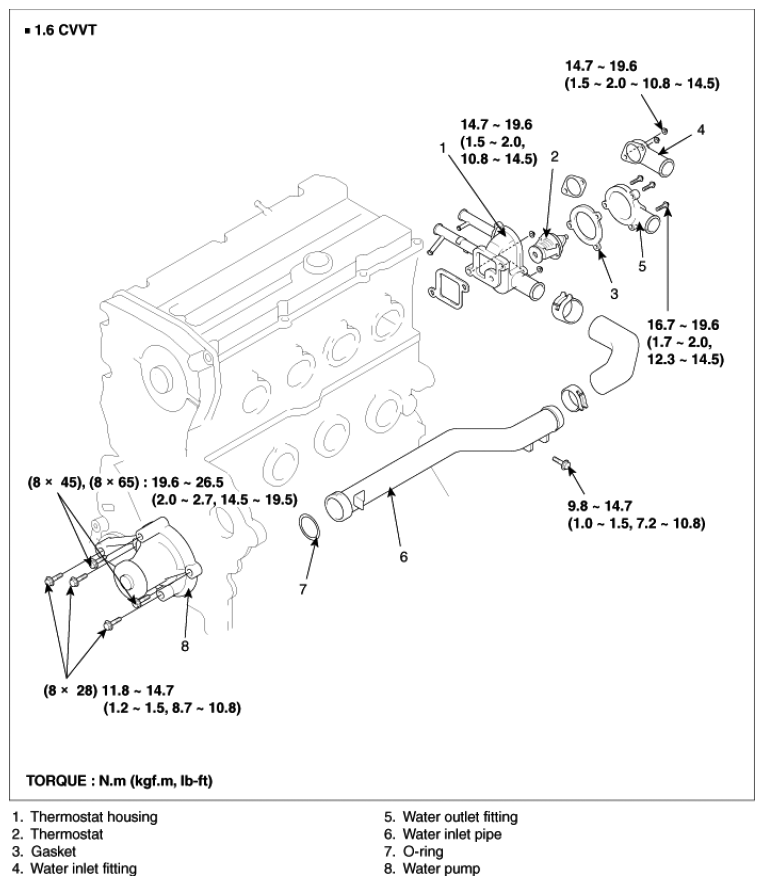

Fig 2: Identifying Cooling System Components (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
