Fuel Delivery System: Components

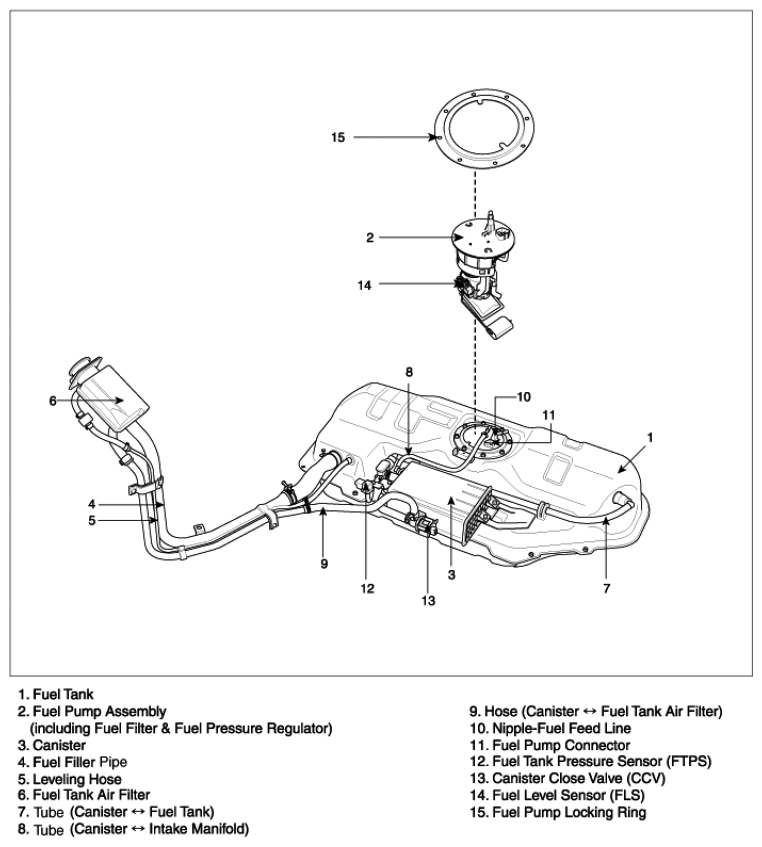

Fig 1: Identifying Fuel Delivery System Components
Courtesy of KIA MOTORS AMERICA, INC.
