Timing Belt: Component

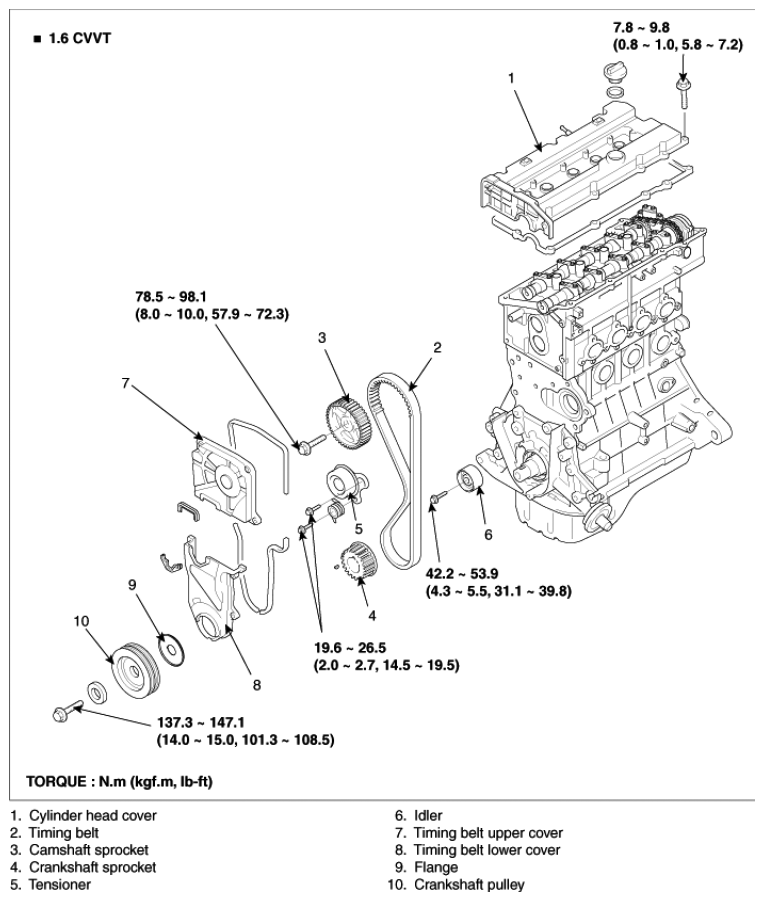

Fig 1: Identifying Timing Belt Components
G06828429Courtesy of KIA MOTORS AMERICA, INC.
