Engine Control System Diagnosis (1 Of 2)
›
DTC P0077: Intake Valve Control Solenoid Circuit High
›
General Information
›
Schematic Diagram
Schematic Diagram

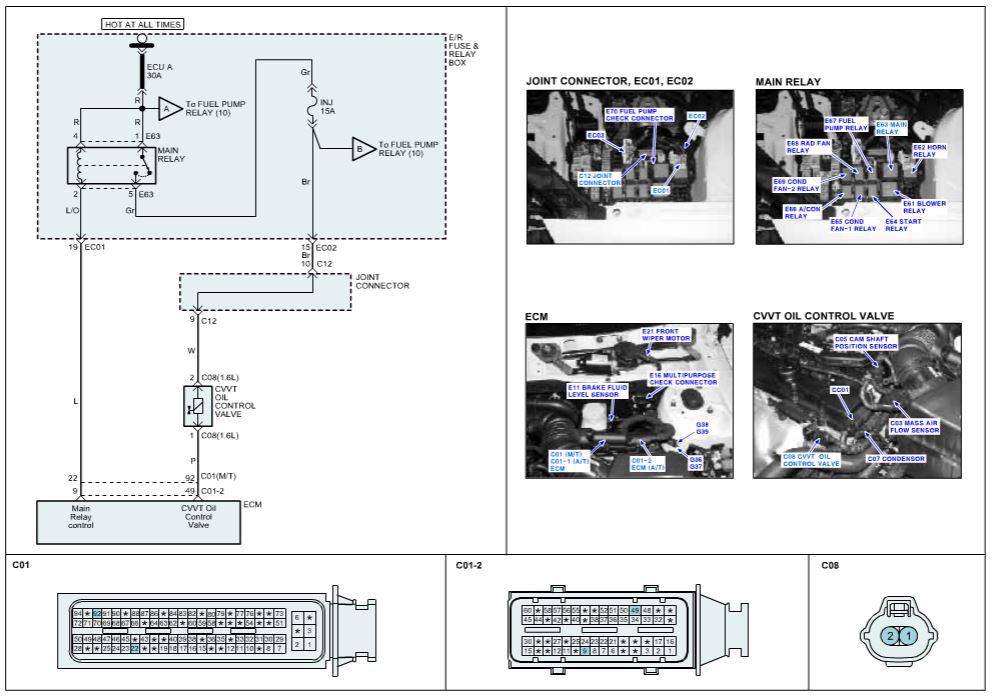

Fig 1: CVVT (Continuously Variable Valve Timing) - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
